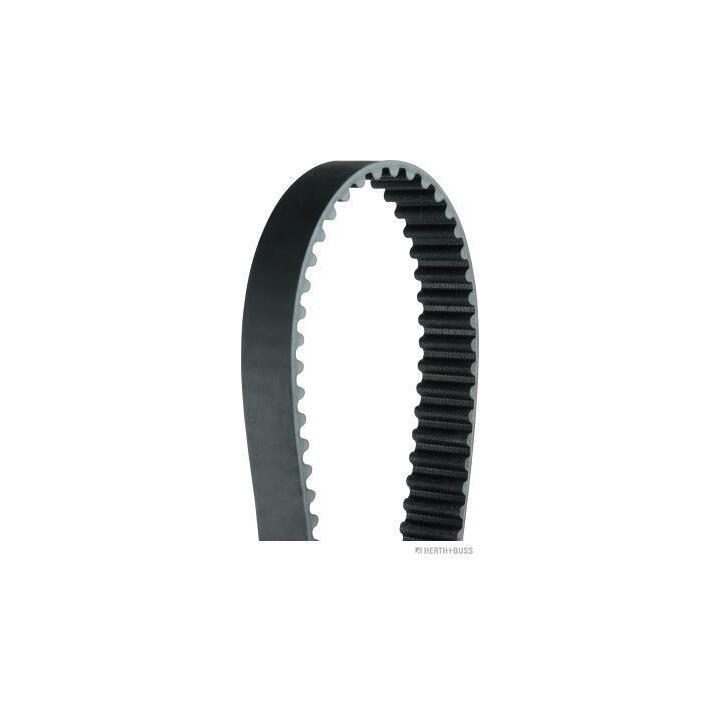

94 TOOTH Timing Belt KIT — 1PZ, 1HZ, 1HD-T — Land Cruiser 70/80 Series, Prado 1990 - 1999

Genuine engine timing belt for the EARLY 1PZ, 1HZ, 1HD-T — Toyota part #13568-19065.

This 94 tooth × 25mm timing belt keeps the crankshaft and camshaft(s) in time — a critical, wear-limited service item. Replace it on your engine's schedule (commonly around 100,000 km, confirm your model), and it is smart to renew the tensioner, idler pulley(s) and water pump in the same job.

At a glance

• Type: Timing belt
• Spec: 94 tooth × 25mm
• Toyota part number: 13568-19065

Engine compatibility

• 1PZ — 3.0L I5 Diesel  |  1990 - on  |  94T × 25mm
• 1HZ — 4.2L I6 Diesel  |  1990–04/1998  |  94T × 25mm
• 1HD-T — 4.2L I6 Turbo Diesel  |  1990–06/1999  |  94T × 25mm

Vehicle fitment

Toyota Land Cruiser (70 Series)

• Chassis: HZJ70LV, HZJ70R, HZJ70RV, HZJ73LV, HZJ73RV, HZJ75LP, HZJ75LV, HZJ75RP, HZJ75RV, PZJ70LV, PZJ70R, PZJ70RV, PZJ73LV, PZJ73R, PZJ73RV, PZJ75LP, PZJ75LV, PZJ75RP, PZJ75RV
• Engines: 1PZ — 3.0L I5 Diesel, 1HZ — 4.2L I6 Diesel, 1HD-T — 4.2L I6 Turbo Diesel

Toyota Land Cruiser (80 Series)

• Chassis: HDJ80L, HDJ80R, HDJ81V, HZJ80L, HZJ80R, HZJ81V
• Engines: 1HZ — 4.2L I6 Diesel, 1HD-T — 4.2L I6 Turbo Diesel

Toyota Land Cruiser Prado (70 Series)

• Chassis: HZJ70, HZJ70V, HZJ73HV, HZJ73V, HZJ75, HZJ77HV, HZJ77V, PZJ70, PZJ70V, PZJ77HV, PZJ77V
• Engines: 1PZ — 3.0L I5 Diesel, 1HZ — 4.2L I6 Diesel, 1HD-T — 4.2L I6 Turbo Diesel

Genuine or value — your choice. Available as a Toyota Genuine (OEM) part, or as a quality equivalent (Aisin, Cruiser Workx Choice brand) at a lower price. Select your option above.

Complete the job: Pairs with the 1HZ service kit. Browse more Maintenance Items.
