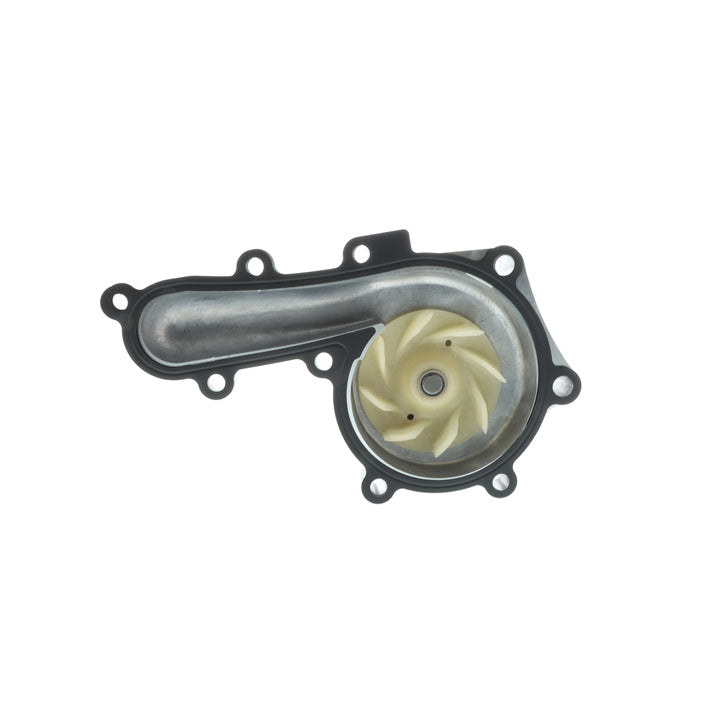

Land Cruiser Water Pump — 1PZ, 1HZ, 1HZT, 1HD-T, 1HD-FT, 1HD-FTE — 70/80/100 Series, Prado (16100-19235)

Genuine engine water pump for the 1PZ, 1HZ, 1HZ-T, 1HD-T, 1HD-FT & 1HD-FTE — Toyota part #16100-19235.

Circulates coolant through the block and radiator. Always replace the water pump when accessing the timing belt set, replacing the head gasket, or troubleshooting cooling issues. Best replaced together with the thermostat as a set.

A failed pump means an overheated engine — don’t wait for the weep hole to tell you.

At a glance

• Type: Engine water pump
• Toyota part number: 16100-19235

Engine compatibility

• 1PZ — 3.0L I5 Diesel
• 1HZ — 4.2L I6 Diesel
• 1HZ-T — 4.2L I6 Turbo Diesel
• 1HD-T — 4.2L I6 Turbo Diesel
• 1HD-FT — 4.2L I6 24V Turbo Diesel
• 1HD-FTE — 4.2L I6 24V Turbo Diesel (EFI)

Vehicle fitment

Toyota Land Cruiser (70 Series)

• Chassis: HZJ70LV, HZJ70R, HZJ70RV, HZJ71L, HZJ71R, HZJ73LV, HZJ73RV, HZJ74L, HZJ75LP, HZJ75LV, HZJ75RP, HZJ75RV, HZJ76L, HZJ76R, HZJ78L, HZJ78R, HZJ79L, HZJ79R, HDJ78R, HDJ79R, PZJ70LV, PZJ70R, PZJ70RV, PZJ73LV, PZJ73R, PZJ73RV, PZJ75LP, PZJ75LV, PZJ75RP, PZJ75RV
• Engines: 1PZ — 3.0L I5 Diesel, 1HZ — 4.2L I6 Diesel, 1HZ-T — 4.2L I6 Turbo Diesel, 1HD-T — 4.2L I6 Turbo Diesel, 1HD-FT — 4.2L I6 24V Turbo Diesel, 1HD-FTE — 4.2L I6 24V Turbo Diesel (EFI)

Toyota Land Cruiser (80 Series)

• Chassis: HZJ80L, HZJ80R, HZJ81V, HDJ80L, HDJ80R, HDJ81V
• Engines: 1HZ — 4.2L I6 Diesel, 1HD-T — 4.2L I6 Turbo Diesel, 1HD-FT — 4.2L I6 24V Turbo Diesel

Toyota Land Cruiser (100 Series)

• Chassis: HZJ105L, HZJ105R, HDJ100L, HDJ100R, HDJ101K
• Engines: 1HZ — 4.2L I6 Diesel, 1HD-FT — 4.2L I6 24V Turbo Diesel, 1HD-FTE — 4.2L I6 24V Turbo Diesel (EFI)

Toyota Land Cruiser Prado (70 Series)

• Chassis: HZJ70, HZJ70V, HZJ71, HZJ71V, HZJ73HV, HZJ73V, HZJ74K, HZJ74V, HZJ75, HZJ76K, HZJ76V, HZJ77HV, HZJ77V, HZJ79, PZJ70, PZJ70V, PZJ77HV, PZJ77V
• Engines: 1PZ — 3.0L I5 Diesel, 1HZ — 4.2L I6 Diesel, 1HZ-T — 4.2L I6 Turbo Diesel, 1HD-T — 4.2L I6 Turbo Diesel, 1HD-FT — 4.2L I6 24V Turbo Diesel, 1HD-FTE — 4.2L I6 24V Turbo Diesel (EFI)

Genuine or value — your choice. Available as a Toyota Genuine (OEM) part, or as a quality equivalent (Aisin, Blue Print) at a lower price. Select your option above.

Complete the job: Pairs with the 1HZ service kit. Browse more Maintenance Items.
