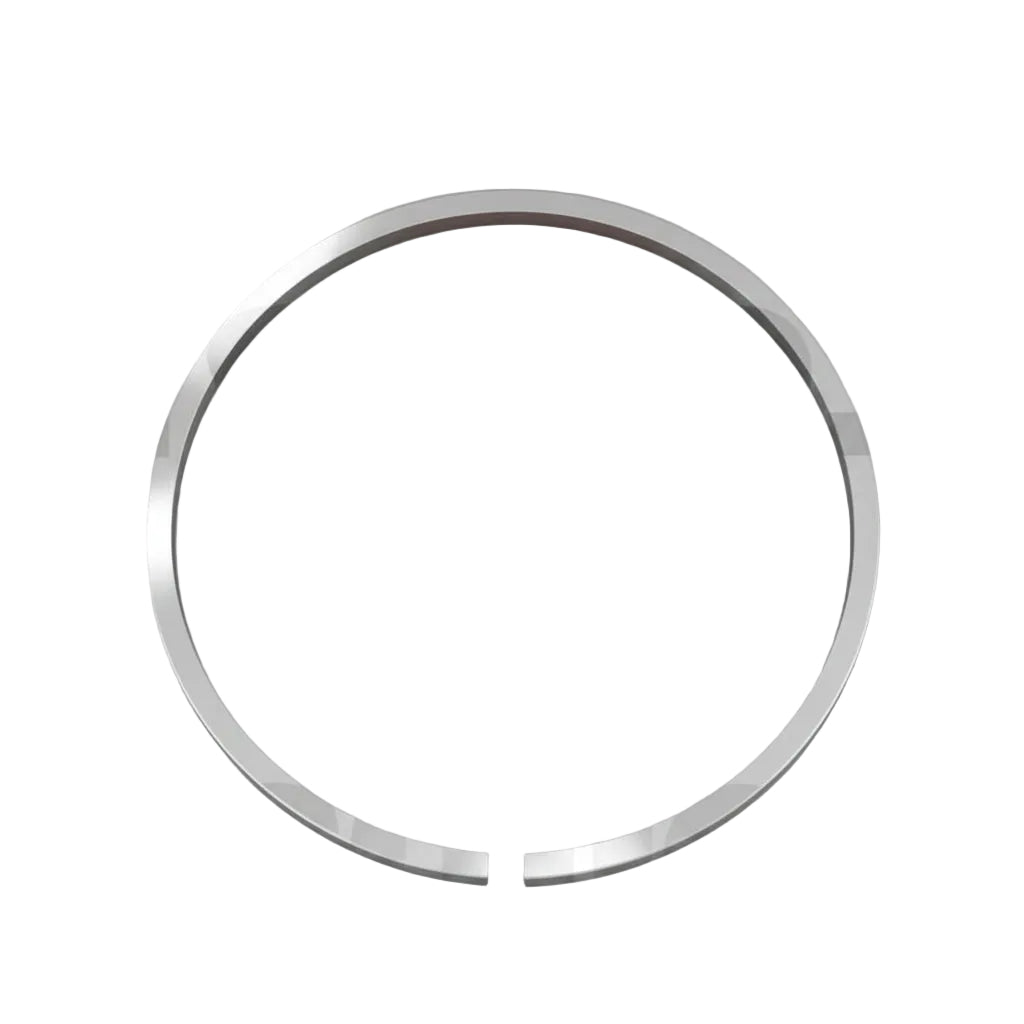

Land Cruiser & Coaster Exhaust Manifold Ring — 1HD-T / 1HZ / 1HD-FT | 1990–2007 (17151-17010)

Exhaust Manifold Ring (17151-17010) for the 1HD-FT, 1HD-FTE, 1HD-T, 1HZ, and 1HZ-T diesel engines. Seals the exhaust manifold joint. Renew whenever the manifold is removed to prevent exhaust leaks and heat loss.

Each engine requires 2× 17151-17010, paired with 2× 17146-17010 (exhaust manifold gasket).

Fitment

Toyota Land Cruiser Prado

• HZJ70, HZJ70V, HZJ71, HZJ71V, HZJ73HV, HZJ73V, HZJ74K, HZJ74V, HZJ75, HZJ76K, HZJ76V, HZJ77HV, HZJ77V, HZJ79

Toyota Land Cruiser

• HDJ100L, HDJ100R, HDJ80L, HDJ80R, HDJ81V, HZJ105L, HZJ105R, HZJ70LV, HZJ70R, HZJ70RV, HZJ71L, HZJ71R, HZJ73LV, HZJ73RV, HZJ74L, HZJ75LP, HZJ75LV, HZJ75RP, HZJ75RV, HZJ76L, HZJ76R, HZJ78L, HZJ78R, HZJ79L, HZJ79R, HZJ80L, HZJ80R, HZJ81V, PZJ70LV, PZJ70R, PZJ70RV, PZJ73LV, PZJ73R, PZJ73RV, PZJ75LP, PZJ75LV, PZJ75RP, PZJ75RV

Toyota Coaster

• HDB20, HDB30, HDB30L, HDB30R, HDB31, HDB50, HDB51, HZB30, HZB30L, HZB30R, HZB31, HZB36V, HZB40, HZB41, HZB46V, HZB50, HZB50L, HZB50R, HZB56V, HZB60L, HZB60R, HZB70L, HZB70R

Engine Compatibility

• 1HD-FT — 4.2L I6 Turbocharged Diesel
• 1HD-FTE — 4.2L I6 Turbocharged Diesel (EFI)
• 1HD-T — 4.2L I6 Turbocharged Diesel
• 1HZ — 4.2L I6 Naturally Aspirated Diesel
• 1HZ-T — 4.2L I6 Turbocharged Diesel

Part Numbers

• 17151-17010 — Exhaust manifold ring (qty 2 per engine)
• 17146-17010 — Exhaust manifold gasket, pairs with this part (qty 2 per engine)
