Land Cruiser Intake To Exhaust Manifold Gasket — 1HD-T / 1HZ 1990–2007 (17171-17010)

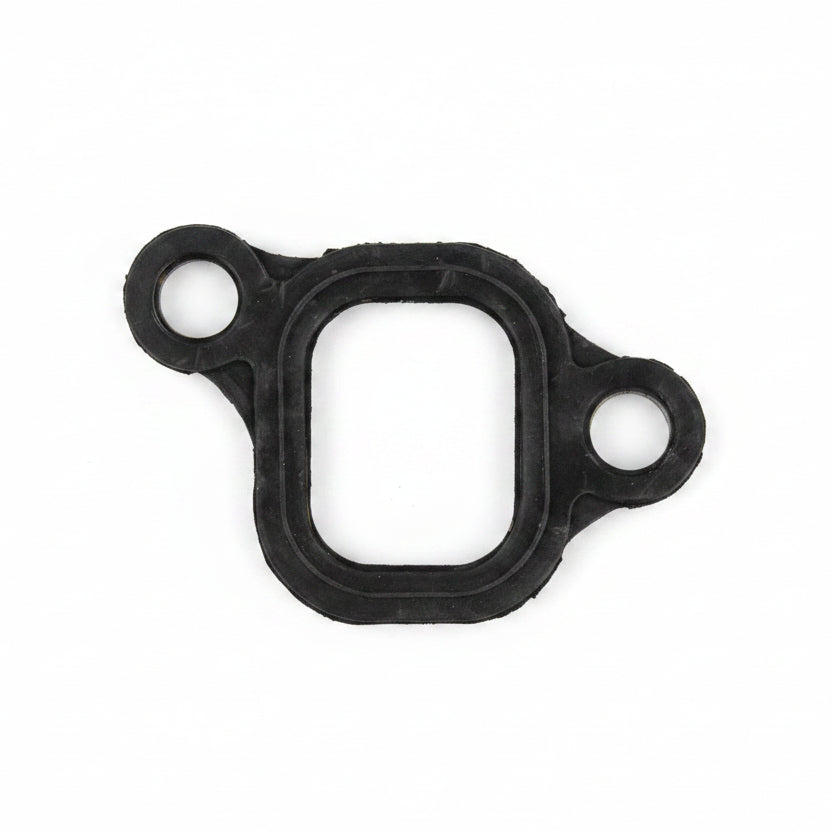

Intake Manifold Gasket No.1 (17171-17010) for the 1HD-T — 4.2L I6 Turbocharged Diesel, 1HZ — 4.2L I6 Naturally Aspirated Diesel, and 1PZ — 3.5L I5 Naturally Aspirated Diesel. Seals the intake manifold to the head. Renew whenever the manifold is off — a leaking intake gasket causes rough idle and air leaks.

Each engine requires 1× 17171-17010 and 5× 17179-17010. Available as an individual gasket or as a complete engine kit (1+5).

Fitment

Toyota Land Cruiser Prado

• HZJ70, HZJ70V, HZJ71, HZJ71V, HZJ73HV, HZJ73V, HZJ74K, HZJ74V, HZJ75, HZJ76K, HZJ76V, HZJ77HV, HZJ77V, HZJ79, PZJ70, PZJ70V, PZJ77HV, PZJ77V

Toyota Land Cruiser

• HDJ100L, HDJ100R, HDJ80L, HDJ80R, HDJ81V, HZJ105L, HZJ105R, HZJ70LV, HZJ70R, HZJ70RV, HZJ71L, HZJ71R, HZJ73LV, HZJ73RV, HZJ74L, HZJ75LP, HZJ75LV, HZJ75RP, HZJ75RV, HZJ76L, HZJ76R, HZJ78L, HZJ78R, HZJ79L, HZJ79R, HZJ80L, HZJ80R, HZJ81V, PZJ70LV, PZJ70R, PZJ70RV, PZJ73LV, PZJ73R, PZJ73RV, PZJ75LP, PZJ75LV, PZJ75RP, PZJ75RV

Engine Compatibility

• 1HD-T — 4.2L I6 Turbocharged Diesel
• 1HZ — 4.2L I6 Naturally Aspirated Diesel
• 1HZ-T — 4.2L I6 Turbocharged Diesel
• 1PZ — 3.5L I5 Naturally Aspirated Diesel

Part Numbers

• 17171-17010 — Intake manifold gasket No.1 (qty 1 per engine)
• 17179-17010 — Intake manifold gasket No.2 (qty 5 per engine)
