Land Cruiser Exhaust Manifold To Head Gasket — 1HD-T, 1HZ, 1PZ 1990–present (17173-17010)

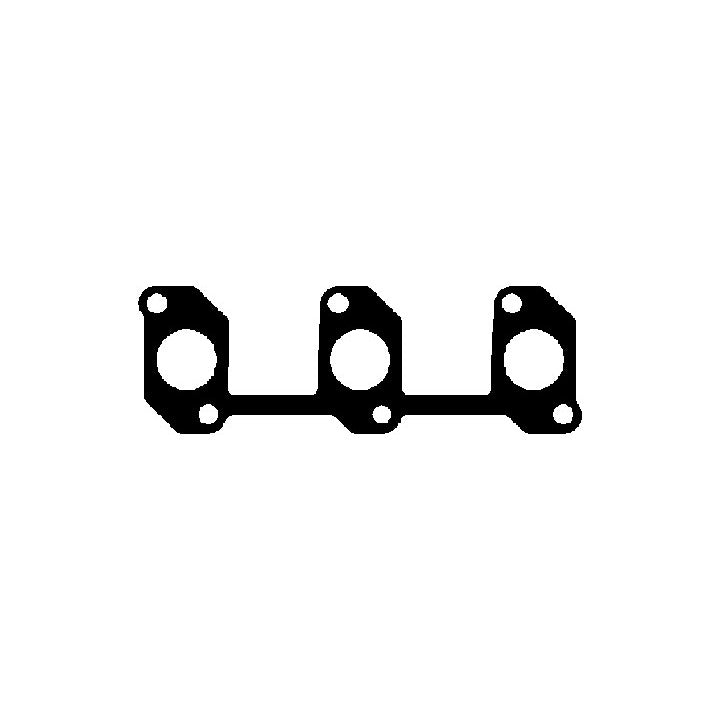

Exhaust Manifold to Head Gasket (17173-17010) for the 1HD-T — 4.2L I6 Turbocharged Diesel, 1HZ — 4.2L I6 Naturally Aspirated Diesel, 1HZ-T — 4.2L I6 Turbocharged Diesel, and 1PZ — 3.5L I5 Naturally Aspirated Diesel. Seals the exhaust manifold to the cylinder head. Renew whenever the manifold is removed — a leaking gasket causes exhaust leaks, power loss, and excess heat.

Each engine requires 2× 17173-17010.

Fitment

Toyota Land Cruiser Prado

• HZJ70, HZJ70V, HZJ71, HZJ71V, HZJ73HV, HZJ73V, HZJ74K, HZJ74V, HZJ75, HZJ76K, HZJ76V, HZJ77HV, HZJ77V, HZJ79, PZJ70, PZJ70V, PZJ77HV, PZJ77V

Toyota Land Cruiser

• 70 Series 4.2L — HZJ70LV, HZJ70R, HZJ70RV, HZJ71L, HZJ71R, HZJ73LV, HZJ73RV, HZJ75LP, HZJ75LV, HZJ75RP, HZJ75RV, HZJ76L, HZJ76R, HZJ77HV, HZJ77V, HZJ78L, HZJ78R, HZJ79L, HZJ79R (1990–present, 96–123 kW)
• 70 Series 4.2L 4x4 — HZJ74L (1990–2001)
• 70 Series 3.5L 4x4 — PZJ70LV, PZJ70R, PZJ70RV, PZJ73LV, PZJ73R, PZJ73RV, PZJ75LP, PZJ75LV, PZJ75RP, PZJ75RV (1990–1994, 85 kW)
• 80 Series 3.5L — HZJ80L, HZJ80R (1990–1992, 85 kW)
• 80 Series 4.2L — HZJ80L, HZJ80R, HZJ81V (1990–1997, 99–123 kW)
• 80 Series 4.2TD — HDJ80L, HDJ80R, HDJ81V (1990–1997, 118–123 kW)
• 100 Series 4.2L — HDJ100L, HDJ100R, HZJ105L, HZJ105R (1998–2007, 96 kW)

Toyota Coaster

• HDB20, HDB30, HDB30L, HDB30R, HDB31, HDB50, HDB51, HZB30, HZB30L, HZB30R, HZB31, HZB36V, HZB40, HZB41, HZB46V, HZB50, HZB50L, HZB50R, HZB56V, HZB60L, HZB60R, HZB70L, HZB70R

Engine Compatibility

• 1HD-T — 4.2L I6 Turbocharged Diesel
• 1HZ — 4.2L I6 Naturally Aspirated Diesel
• 1HZ-T — 4.2L I6 Turbocharged Diesel
• 1PZ — 3.5L I5 Naturally Aspirated Diesel

Part Numbers

• 17173-17010 — Exhaust manifold to head gasket (qty 2 per engine)
