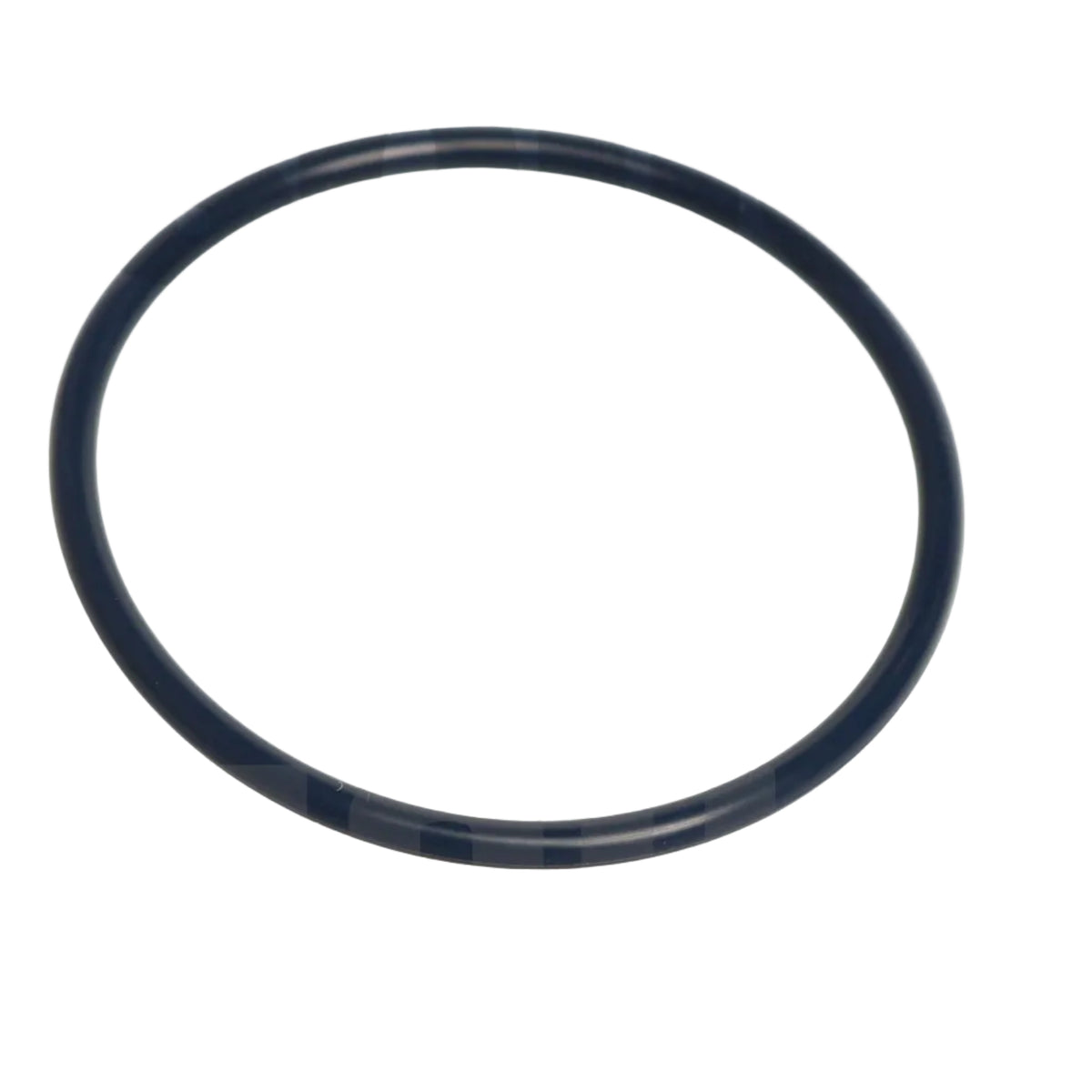

Land Cruiser Exhaust Manifold Gasket — 1HD-T / 1HZ / 1HD-FT | 1990– Present (96732-24042)

Exhaust Manifold Gasket (96732-24042) for the 1HD-FT — 4.2L I6 Turbocharged Diesel, 1HD-FTE — 4.2L I6 Turbocharged Diesel (EFI), 1HD-T — 4.2L I6 Turbocharged Diesel, 1HZ — 4.2L I6 Naturally Aspirated Diesel, and 1HZ-T — 4.2L I6 Turbocharged Diesel. Seals the exhaust manifold front and rear halves Renew whenever the manifold is removed — a leaking gasket causes exhaust leaks, power loss, and heat damage.

Each engine requires 2× 96732-24042, paired with 2× 17151-17010 (exhaust manifold ring).

Fitment

Toyota Land Cruiser Prado

• HZJ70, HZJ70V, HZJ71, HZJ71V, HZJ73HV, HZJ73V, HZJ74K, HZJ74V, HZJ75, HZJ76K, HZJ76V, HZJ77HV, HZJ77V, HZJ79

Toyota Land Cruiser

• HDJ100L, HDJ100R, HDJ101K, HDJ78R, HDJ79R, HDJ80L, HDJ80R, HDJ81V, HZJ105L, HZJ105R, HZJ70LV, HZJ70R, HZJ70RV, HZJ71L, HZJ71R, HZJ73LV, HZJ73RV, HZJ74L, HZJ75LP, HZJ75LV, HZJ75RP, HZJ75RV, HZJ76L, HZJ76R, HZJ78L, HZJ78R, HZJ79L, HZJ79R, HZJ80L, HZJ80R, HZJ81V

Engine Compatibility

• 1HD-FT — 4.2L I6 Turbocharged Diesel
• 1HD-FTE — 4.2L I6 Turbocharged Diesel (EFI)
• 1HD-T — 4.2L I6 Turbocharged Diesel
• 1HZ — 4.2L I6 Naturally Aspirated Diesel
• 1HZ-T — 4.2L I6 Turbocharged Diesel

Part Numbers

• 96732-24042 — Exhaust manifold gasket (qty 2 per engine)
• 17151-17010 — Exhaust manifold ring, pairs with this part (qty 2 per engine)
