ARB On-Board 24V Single Air Compressor — On-Board Air for Lockers & Tires | CKMA24

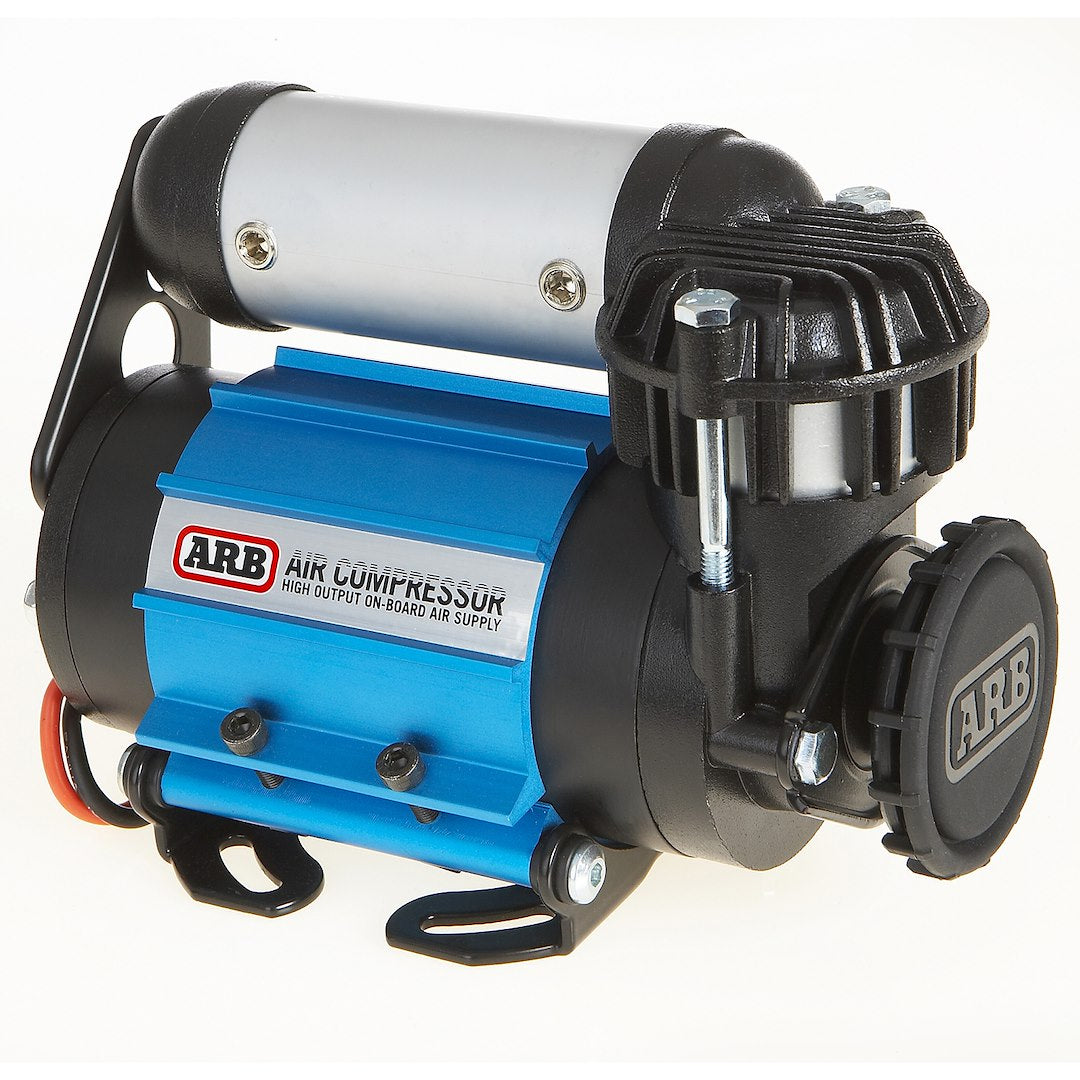

The ARB CKMA24 Single Motor On-Board Air Compressor delivers reliable 24V on-board air for 4WD vehicles running 24-volt electrical systems. A compact, capable single-motor unit engineered to engage ARB Air Lockers and handle tire inflation and air tool operation in demanding conditions.

Key Features

• Single-motor design engineered specifically for 24V electrical systems
• Engages ARB Air Lockers on demand for instant traction
• Inflates tires and powers air tools
• Sealed, moisture-resistant motor housing — suitable for under-bonnet or in-cab mounting
• Thermally protected motor to prevent overheating during extended use
• IP55-rated for dust and water resistance
• Includes wiring harness, mounting hardware, and air fittings for a complete installation
• Compact, low-profile design for flexible fitment
• 3-year warranty

Performance

• Air flow @ 0 PSI: 3.09 CFM
• Air flow @ 29 PSI: 2.34 CFM
• Max pressure: 150 PSI
• Max current draw: 17.2 A
• Duty cycle: 100% (60/0)

Specifications

• Part number: CKMA24
• Brand: ARB
• Voltage: 24V DC
• Motor configuration: Single
• IP rating: IP55
• Weight: 8.8 lb
• Country of origin: Australia
• Warranty: 3 years

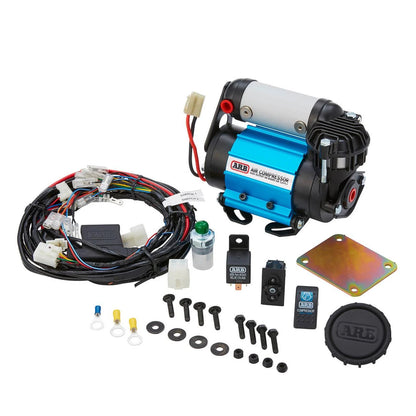

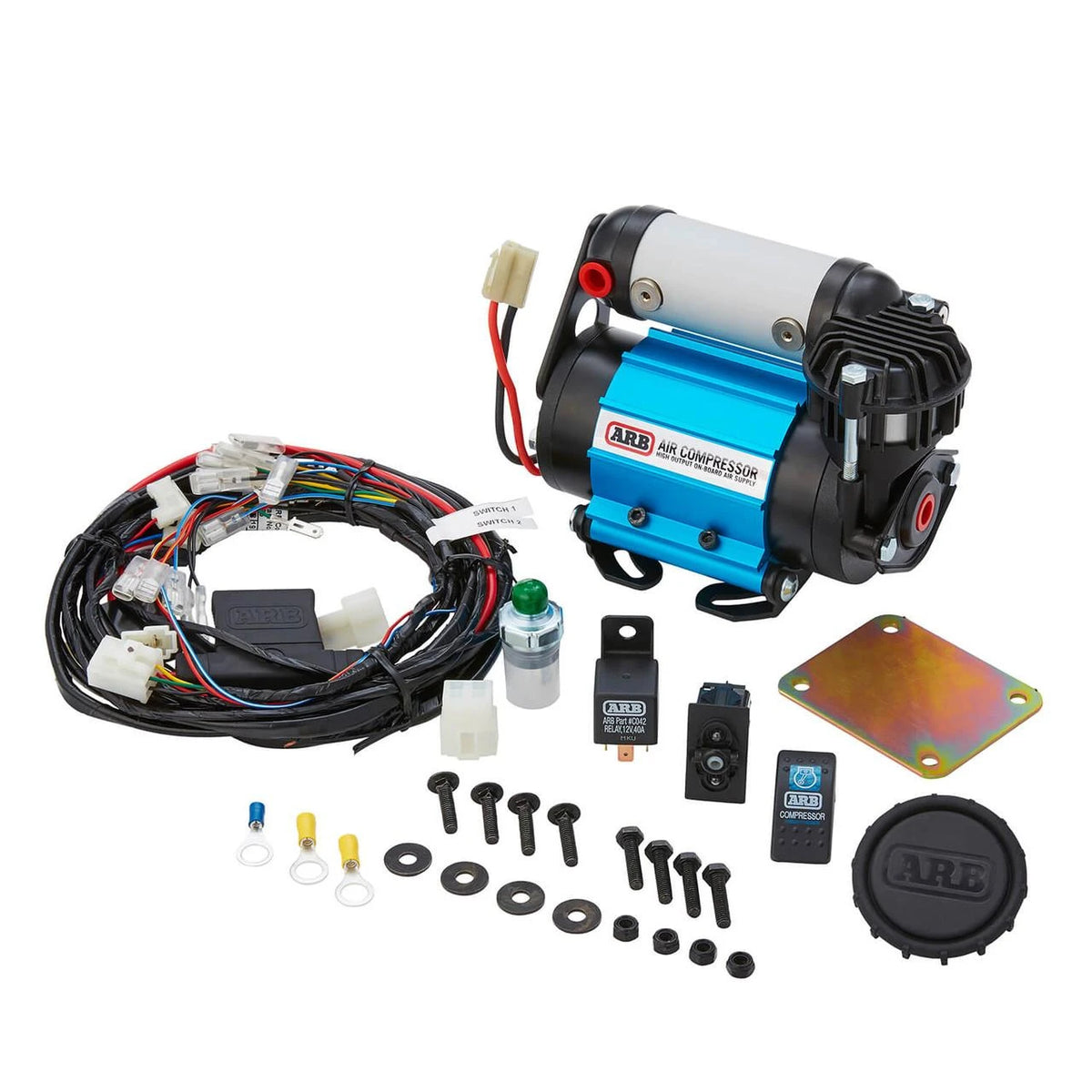

In the Box

• CKMA24 single motor compressor unit
• Wiring harness
• Mounting hardware
• Air fittings and hose

Note: The CKMA24 is the 24V single-motor variant. For higher airflow demands, see the twin-motor CKMTA24. Confirm your vehicle’s electrical system voltage before ordering.
