The ARB RD131 is an air-actuated, driver-selectable locking differential for the Toyota 8" IFS axle — 100% mechanical lock on demand, fully open when disengaged.
Technical specifications
Ring gear: Toyota 8" IFS
Spline: 30
Carrier bearing: 50 mm
Ratio range: All ratios
Material: Forged steel
Actuation: Pneumatic (air)
Engineering

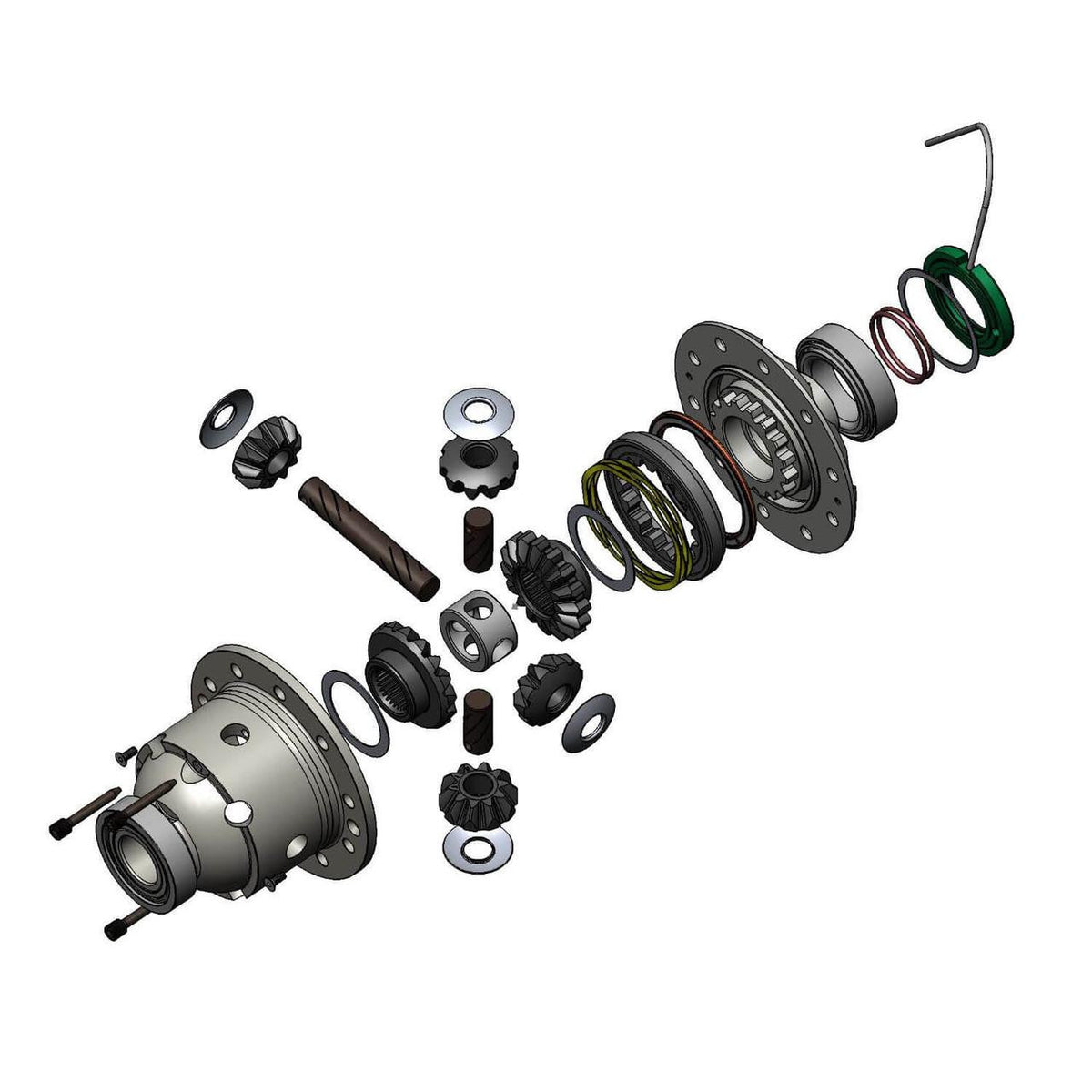

Two-piece, ultra-durable design with minimal moving parts for maximum reliability
Patented, timed pneumatic locking mechanism — high strength with ultra-fast unlocking
Steel-reinforced, elastomer-bonded annular seal rated for extreme temperatures
Fully open when disengaged — no effect on on-road drivability or driveline wear
5-year warranty
Fitment: Toyota 4Runner / Hilux IFS Front. Toyota 8" IFS (50mm brg), 30-spline, all ratios. 50mm bearing independent front.
Spline note: Toyota 8" IFS front differentials are typically 30 spline — confirm your spline count before ordering.

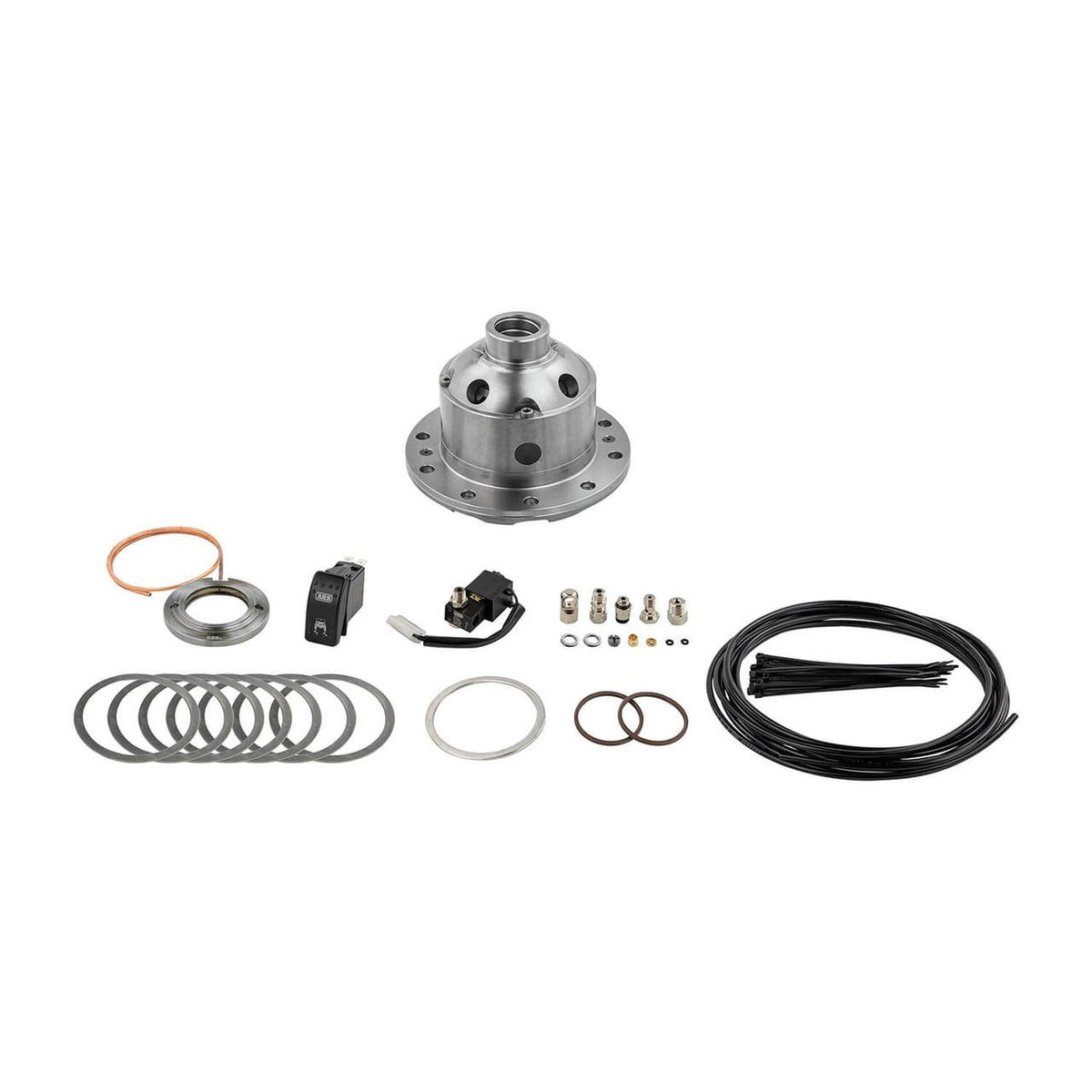

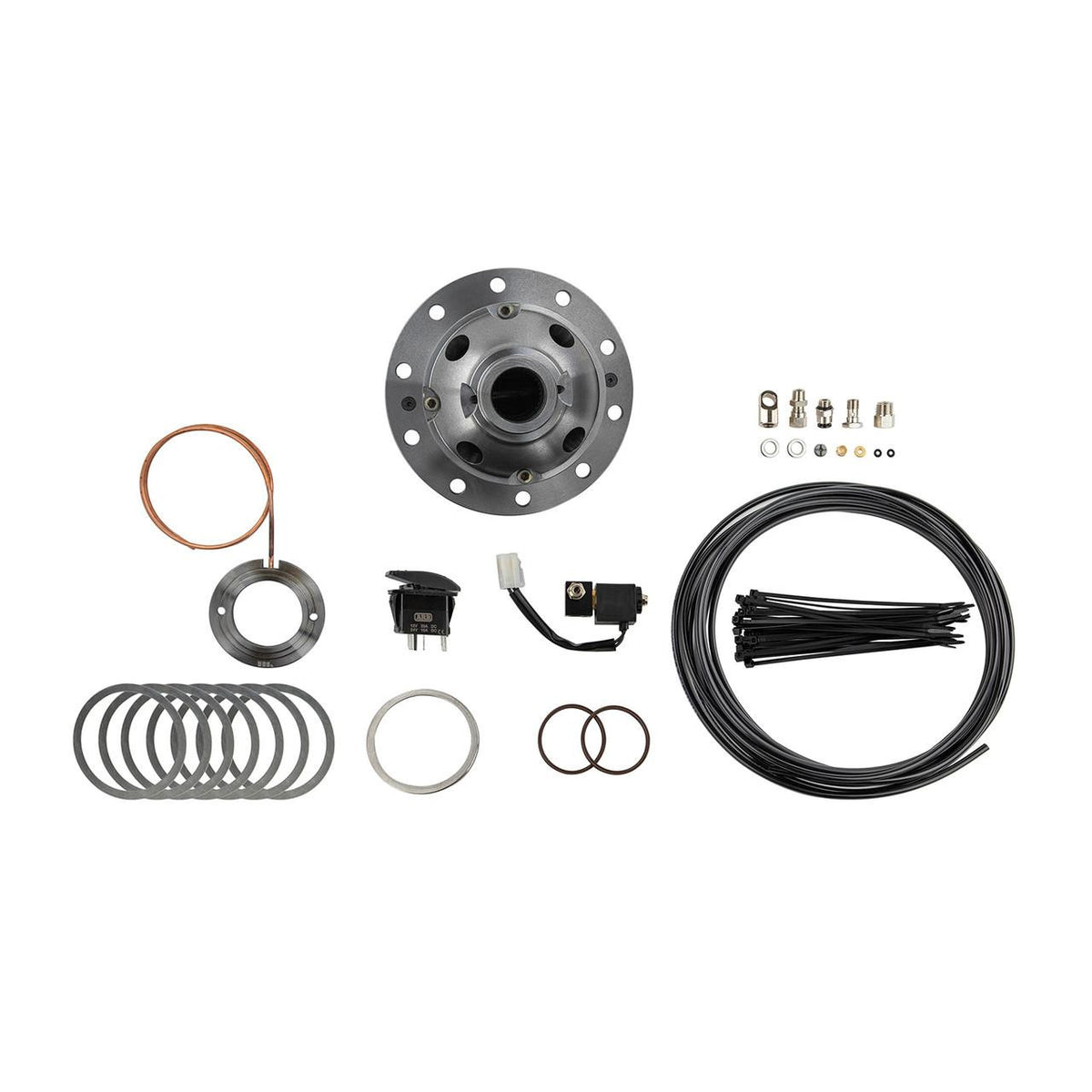

In the box: Air Locker differential, dash activation switch, solenoid valve, air line and bulkhead fitting. An ARB air compressor is required to operate (sold separately) — pair with an ARB CKMA12 (single) or CKMTA12 (twin).
