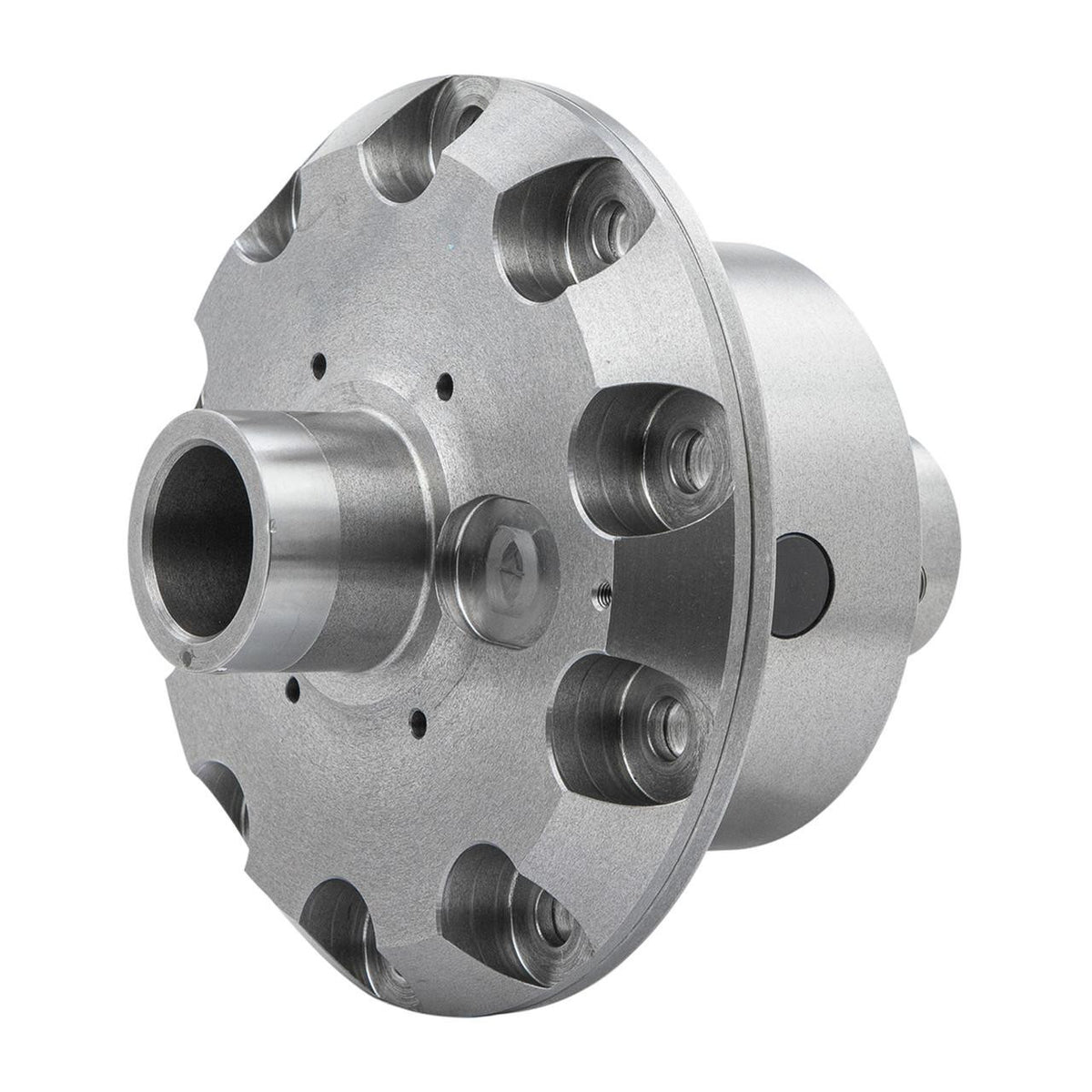

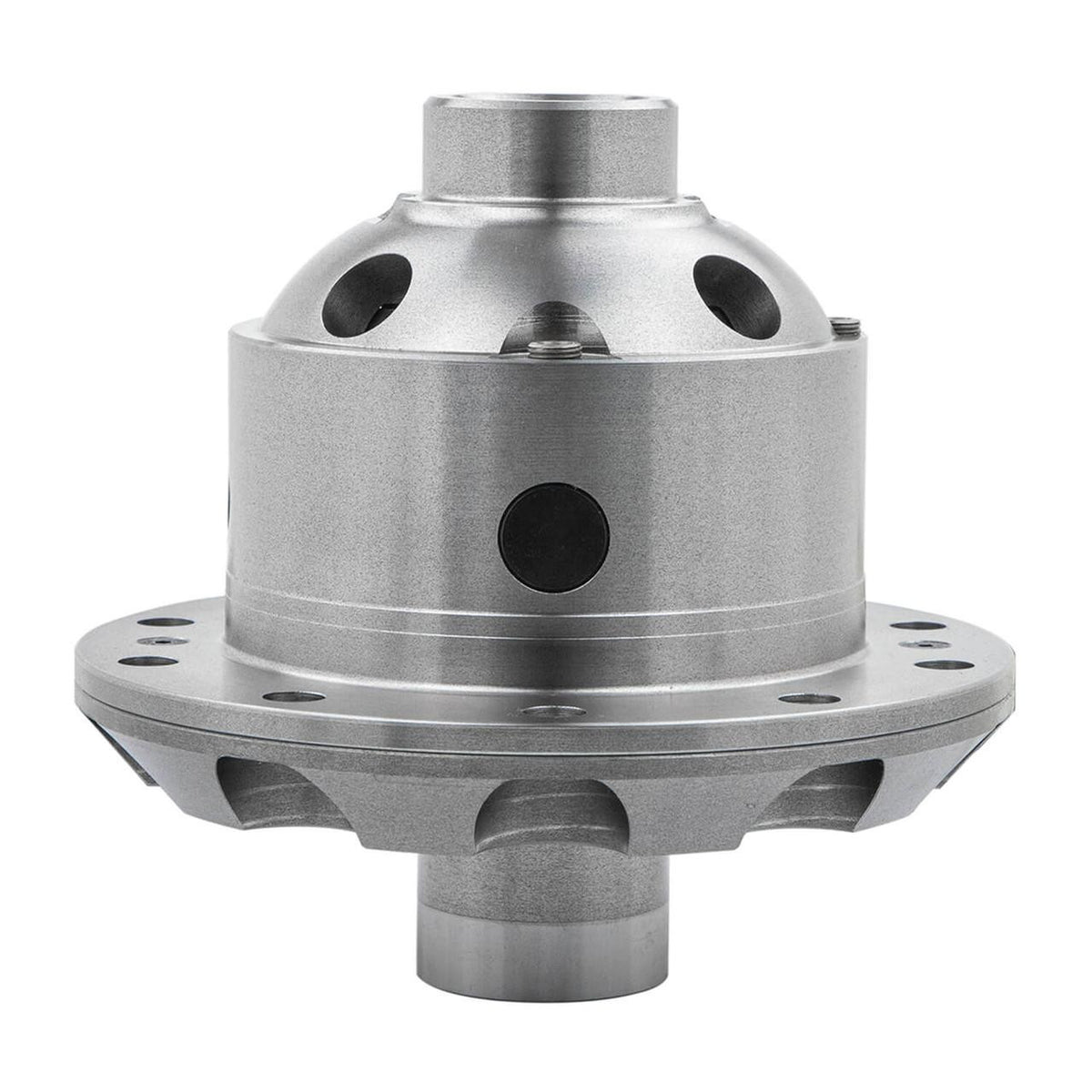

ARB Air Locker — Toyota Land Cruiser 70/80/105 Series Front (8", 30-Spline) | RD132

The ARB RD132 is an air-actuated, driver-selectable locking differential for the Toyota 8" axle — 100% mechanical lock on demand, fully open when disengaged.

Technical specifications

• Ring gear: Toyota 8" (solid axle, front or rear)
• Spline: 30
• Carrier bearing: 50 mm
• Shaft diameter: 1.31"
• Ratio range: All ratios
• Material: Forged steel
• Actuation: Pneumatic (air)

Engineering

• Two-piece, ultra-durable design with minimal moving parts for maximum reliability
• Patented, timed pneumatic locking mechanism — high strength with ultra-fast unlocking
• Steel-reinforced, elastomer-bonded annular seal rated for extreme temperatures
• Fully open when disengaged — no effect on on-road drivability or driveline wear
• 5-year warranty

Fitment: Toyota Land Cruiser 70/80/105 Series Front. Toyota 8" (solid, high-pinion), 30-spline, all ratios. 8" high-pinion solid front on 70/80/105 Series; also fits solid-axle 8" rears on Toyota pickups/4Runner.

About the Toyota 8" axle: the 8" solid front differential used on the Land Cruiser 70/80/105 Series is the same third-member family Toyota fits as the rear differential on many lighter models — light-duty Prado, 4Runner, Hilux and pickups/mini-trucks. This locker suits a wide range of Toyota 8" applications, front or rear; match the spline count (Toyota 8" fronts are typically 27 or 30 spline).

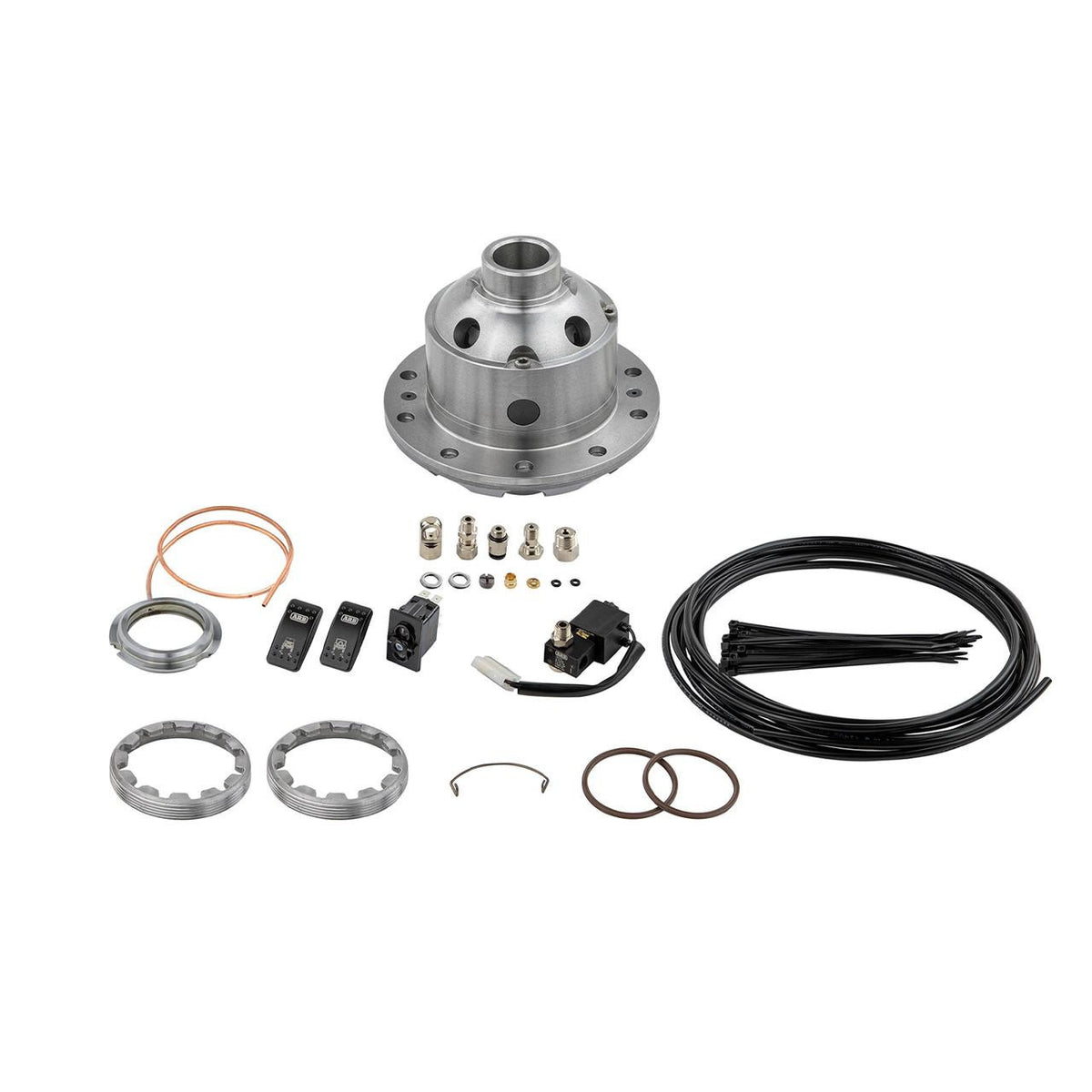

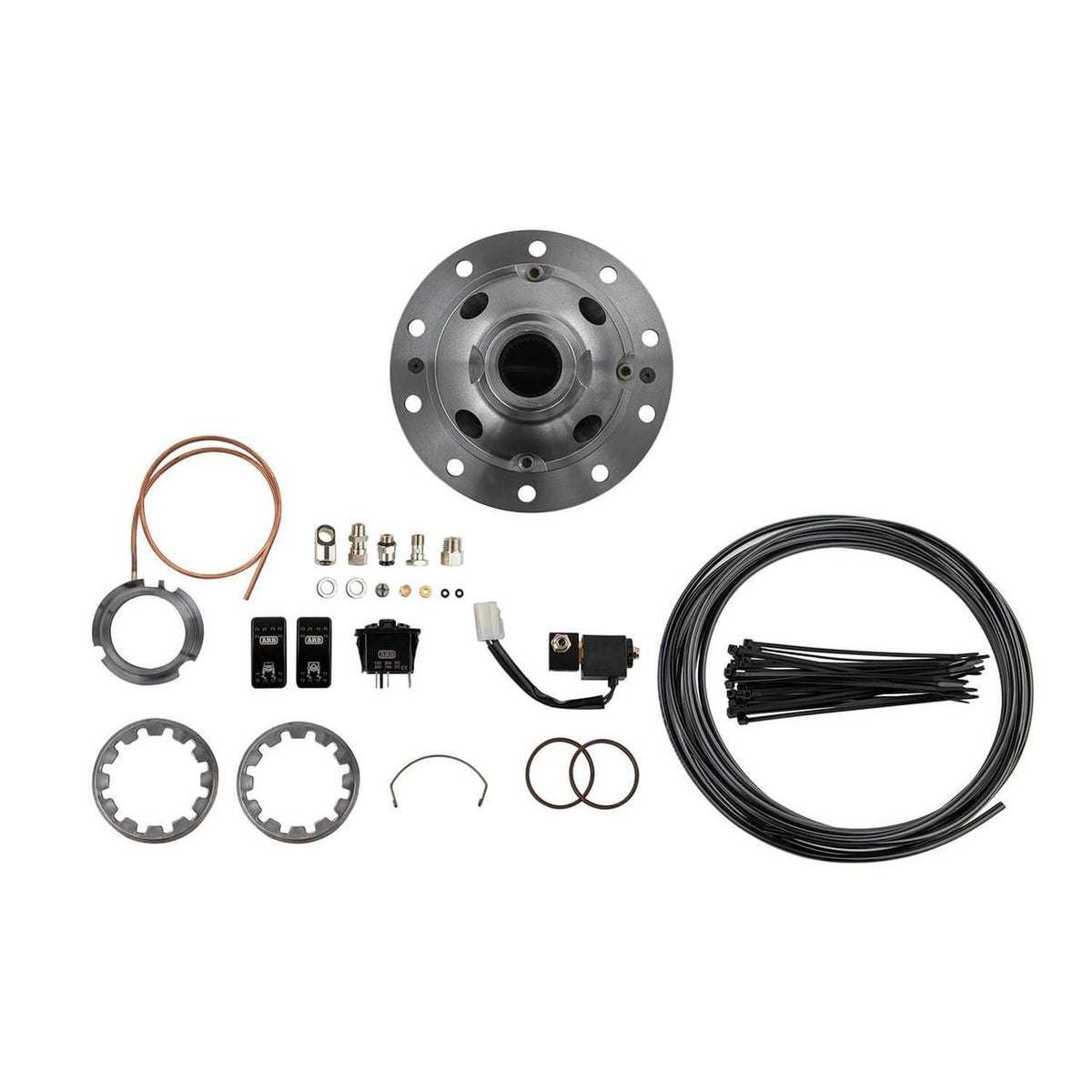

In the box: Air Locker differential, dash activation switch, solenoid valve, air line and bulkhead fitting. An ARB air compressor is required to operate (sold separately) — pair with an ARB CKMA12 (single) or CKMTA12 (twin).
