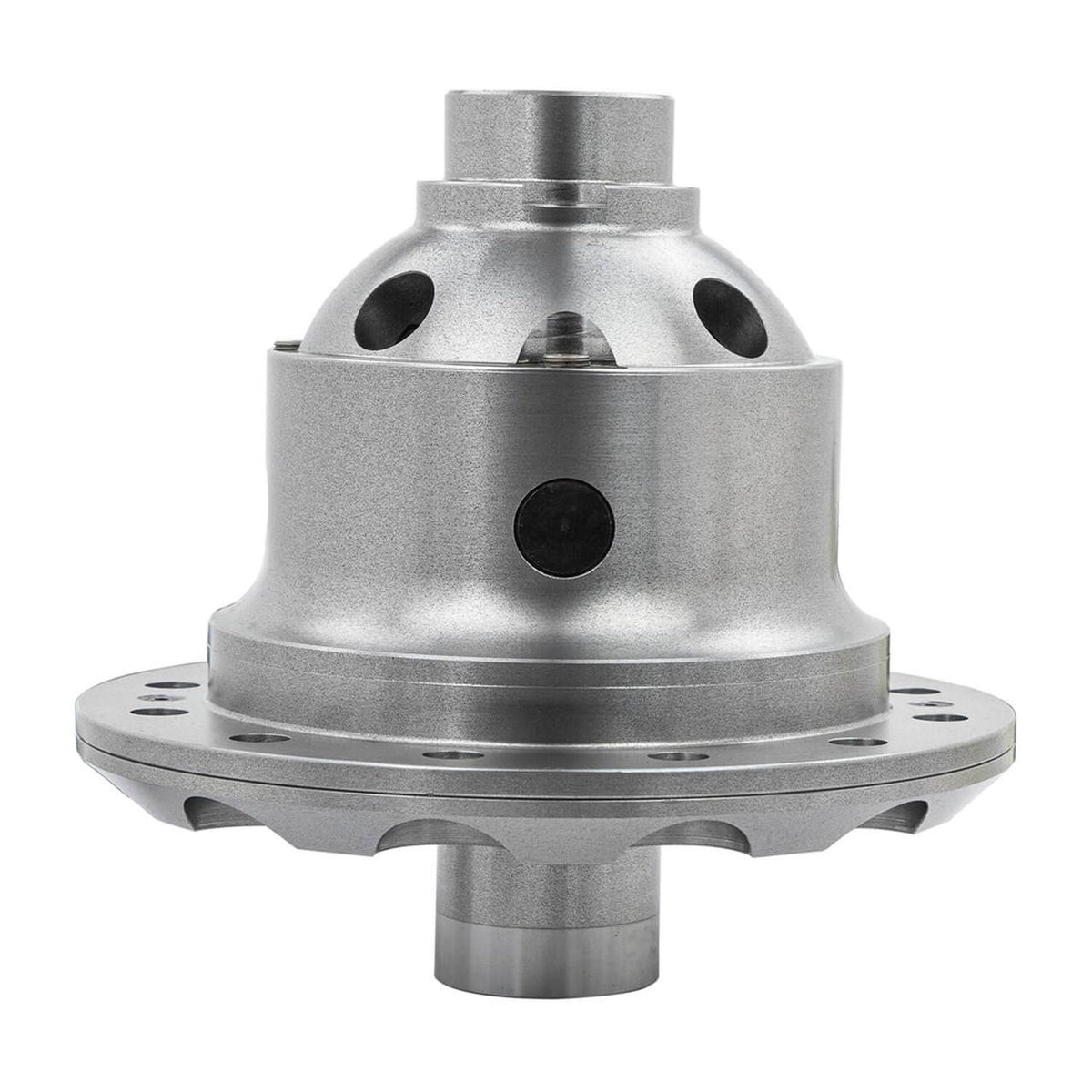

ARB Air Locker — Toyota Land Cruiser 100/105/200 Series Rear (9.5", 32-Spline) | RD152

The ARB RD152 is an air-actuated, driver-selectable locking differential for the Toyota 9.5" axle — 100% mechanical lock on demand, fully open when disengaged.

Technical specifications

• Ring gear: Toyota 9.5"
• Spline: 32
• Shaft diameter: 1.37"
• Ratio range: All ratios
• Material: Forged steel
• Actuation: Pneumatic (air)

Engineering

• Two-piece, ultra-durable design with minimal moving parts for maximum reliability
• Patented, timed pneumatic locking mechanism — high strength with ultra-fast unlocking
• Steel-reinforced, elastomer-bonded annular seal rated for extreme temperatures
• Fully open when disengaged — no effect on on-road drivability or driveline wear
• 5-year warranty

Fitment: Toyota Land Cruiser 100/105/200 Series Rear (9.5" 32-Spline). Toyota 9.5" (12-bolt, full-float), 32-spline, all ratios. 12-bolt 9.5" full-float rear, 32-spline — also Lexus LX470/LX570.

Ring-gear sizing: Toyota rear differentials quoted as 8.9-inch and 9.5-inch are frequently used synonymously — the meaningful difference between Toyota rear diffs is usually the spline count (27, 30, 32 or 36 spline), not the nominal ring-gear size. Match your axle by spline count / axle code rather than the quoted size before ordering.

In the box: Air Locker differential, dash activation switch, solenoid valve, air line and bulkhead fitting. An ARB air compressor is required to operate (sold separately) — pair with an ARB CKMA12 (single) or CKMTA12 (twin).
