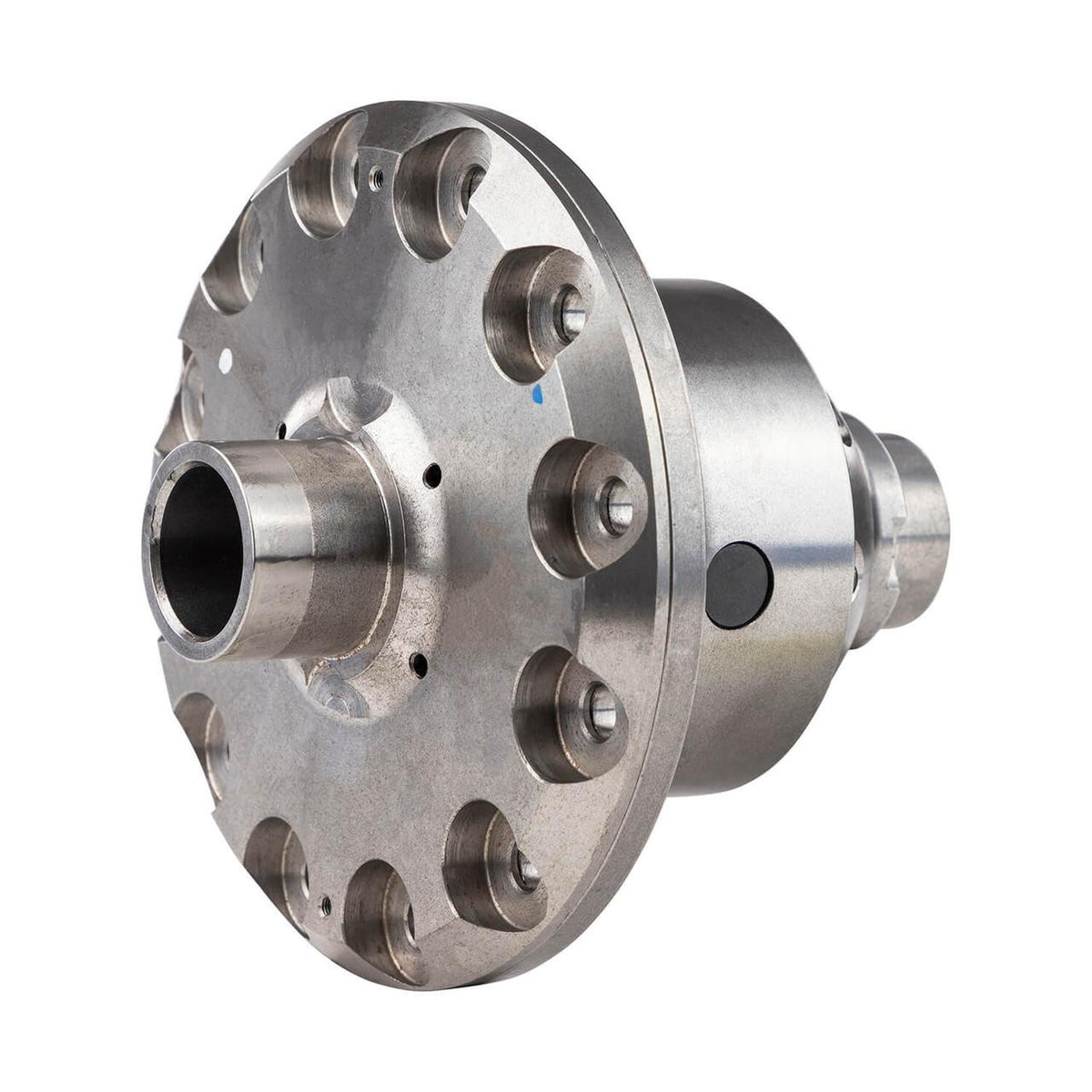

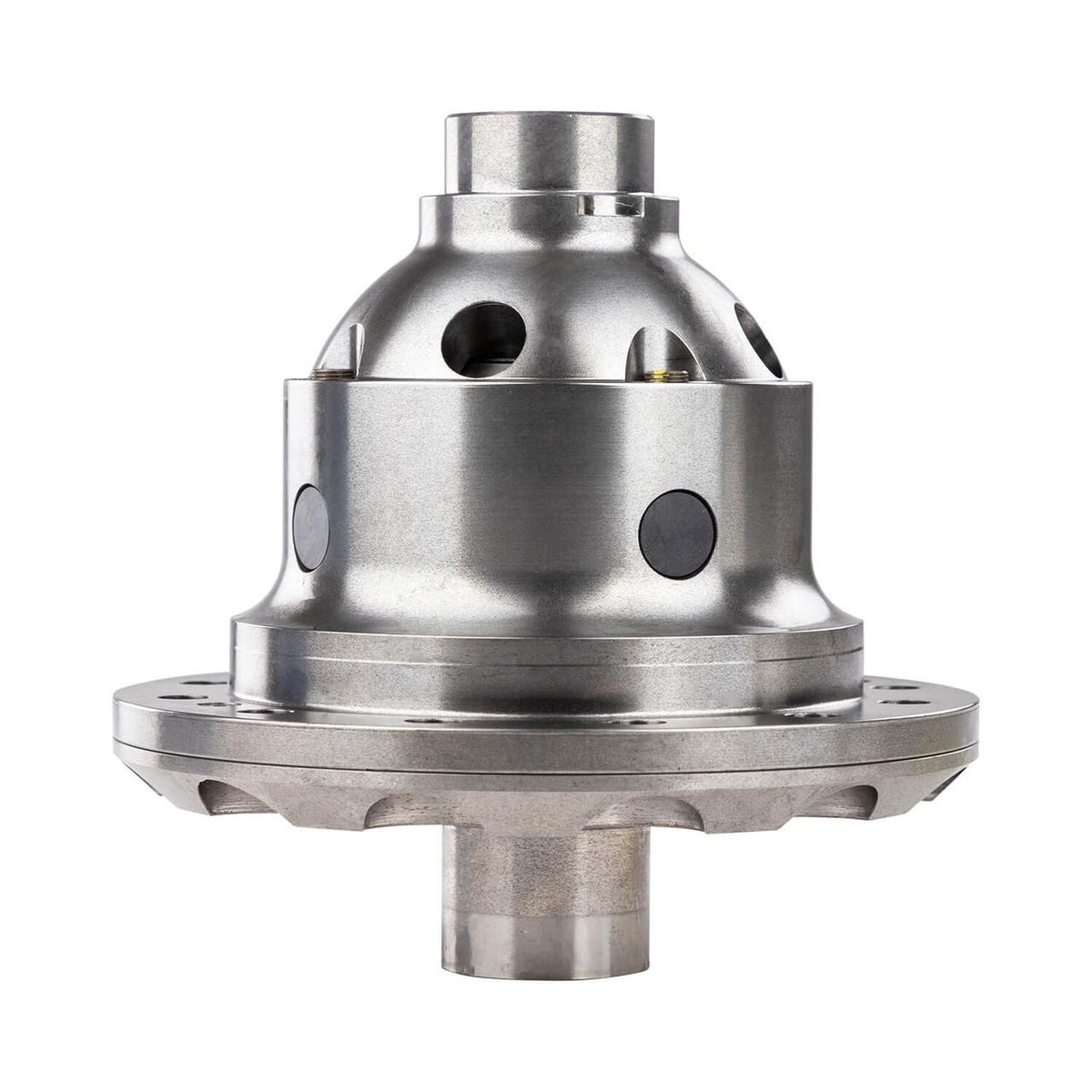

ARB Air Locker — C-Clip Toyota Land Cruiser 40/60/70/80 Series Rear (9.5", 30-Spline) | RD264

The ARB RD264 is an air-actuated, driver-selectable locking differential for the Toyota 9.5" axle — 100% mechanical lock on demand, fully open when disengaged. This unit is suitable for C clip axles.

Technical specifications

• Ring gear: Toyota 9.5" (12-bolt, shimmed)
• Spline: 30
• Shaft diameter: 1.37"
• Ratio range: All ratios
• Material: Forged steel
• Actuation: Pneumatic (air)

Engineering

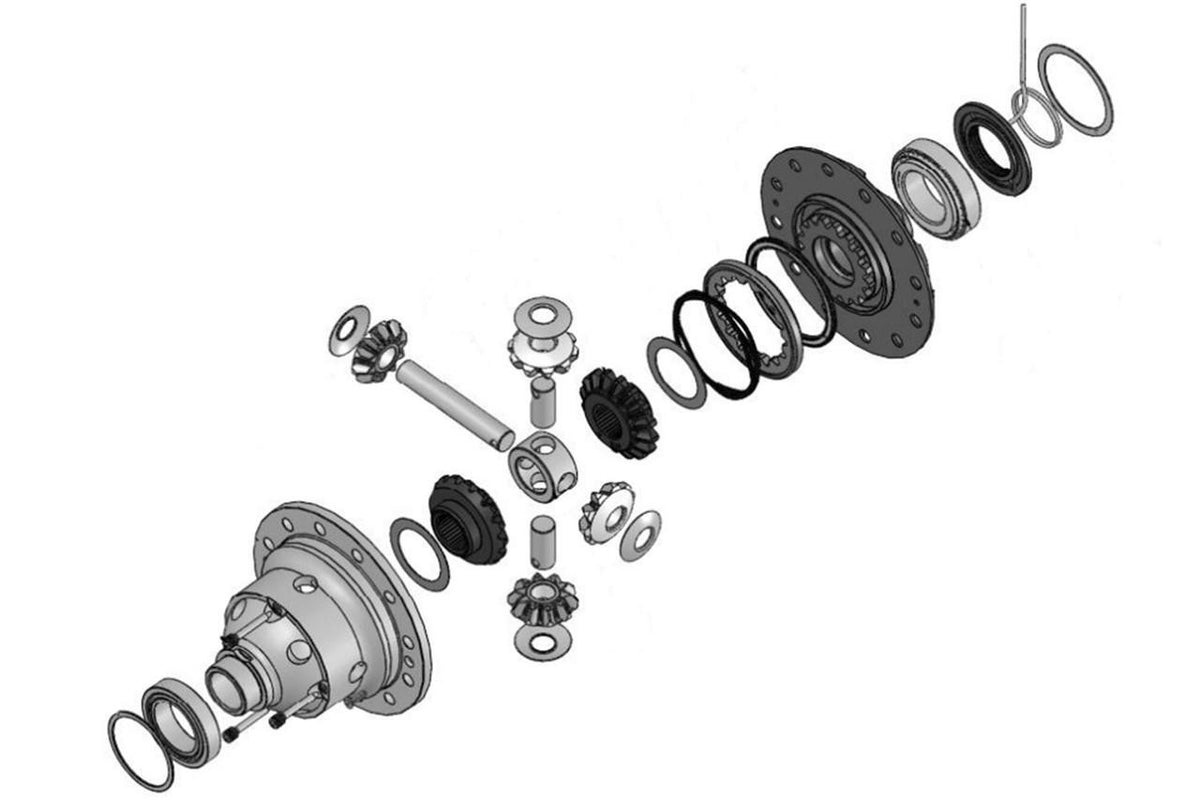

• Two-piece, ultra-durable design with minimal moving parts for maximum reliability
• Patented, timed pneumatic locking mechanism — high strength with ultra-fast unlocking
• Steel-reinforced, elastomer-bonded annular seal rated for extreme temperatures
• Fully open when disengaged — no effect on on-road drivability or driveline wear
• 5-year warranty

Fitment: Toyota Land Cruiser 40/60/70/80 Series Rear (9.5" 30-Spline). Toyota 9.5" (12-bolt, 30-spline; full & semi-float), 30-spline, all ratios. The ONLY rear locker that fits the early 40/60/70 semi-float 27-spline C-clip axle (Eaton E Locker won't).

Ring-gear sizing: Toyota rear differentials quoted as 8.9-inch and 9.5-inch are frequently used synonymously — the meaningful difference between Toyota rear diffs is usually the spline count (27, 30, 32 or 36 spline), not the nominal ring-gear size. Match your axle by spline count / axle code rather than the quoted size before ordering.

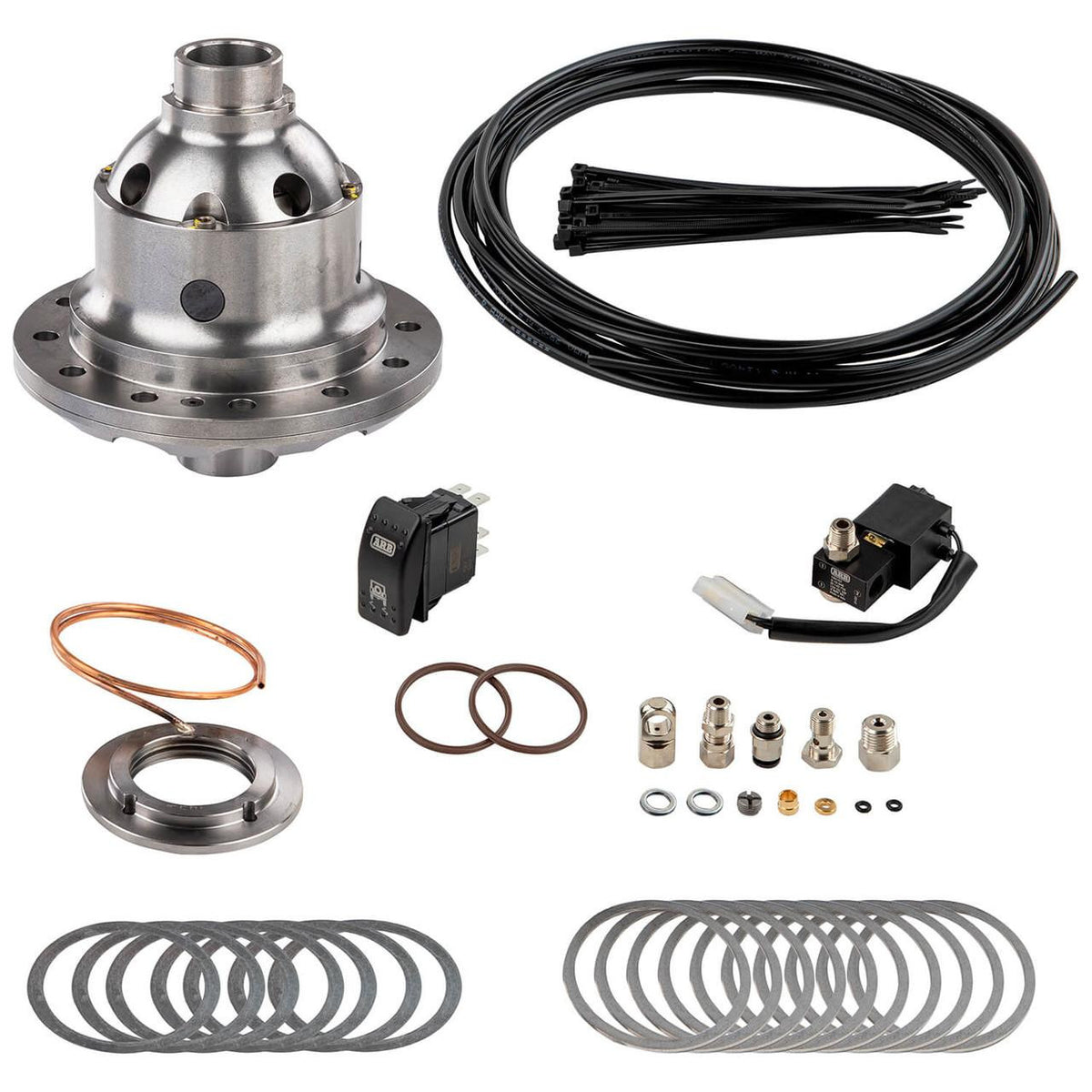

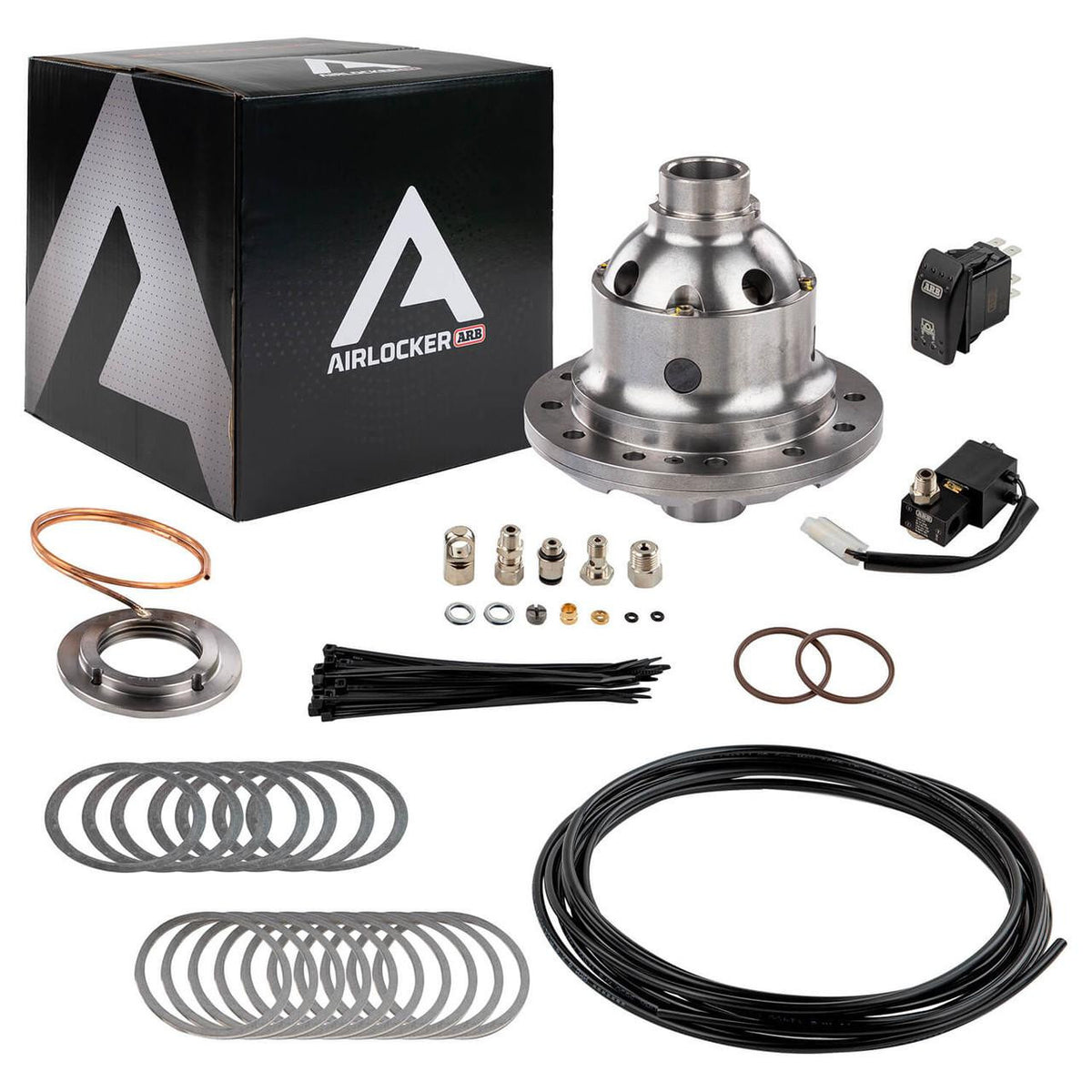

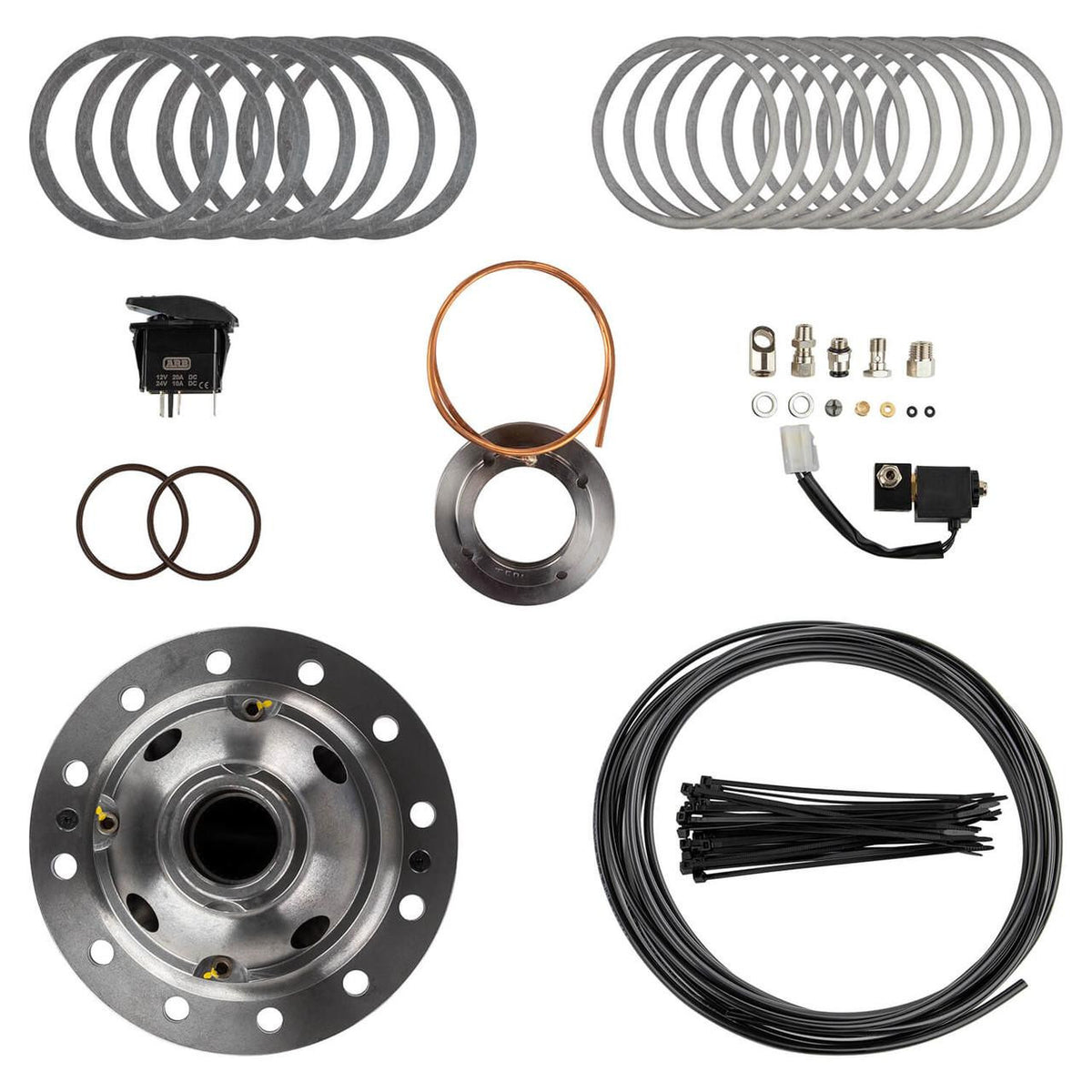

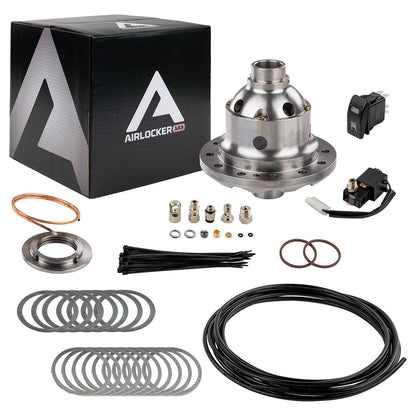

In the box: Air Locker differential, dash activation switch, solenoid valve, air line and bulkhead fitting. An ARB air compressor is required to operate (sold separately) — pair with an ARB CKMA12 (single) or CKMTA12 (twin).
