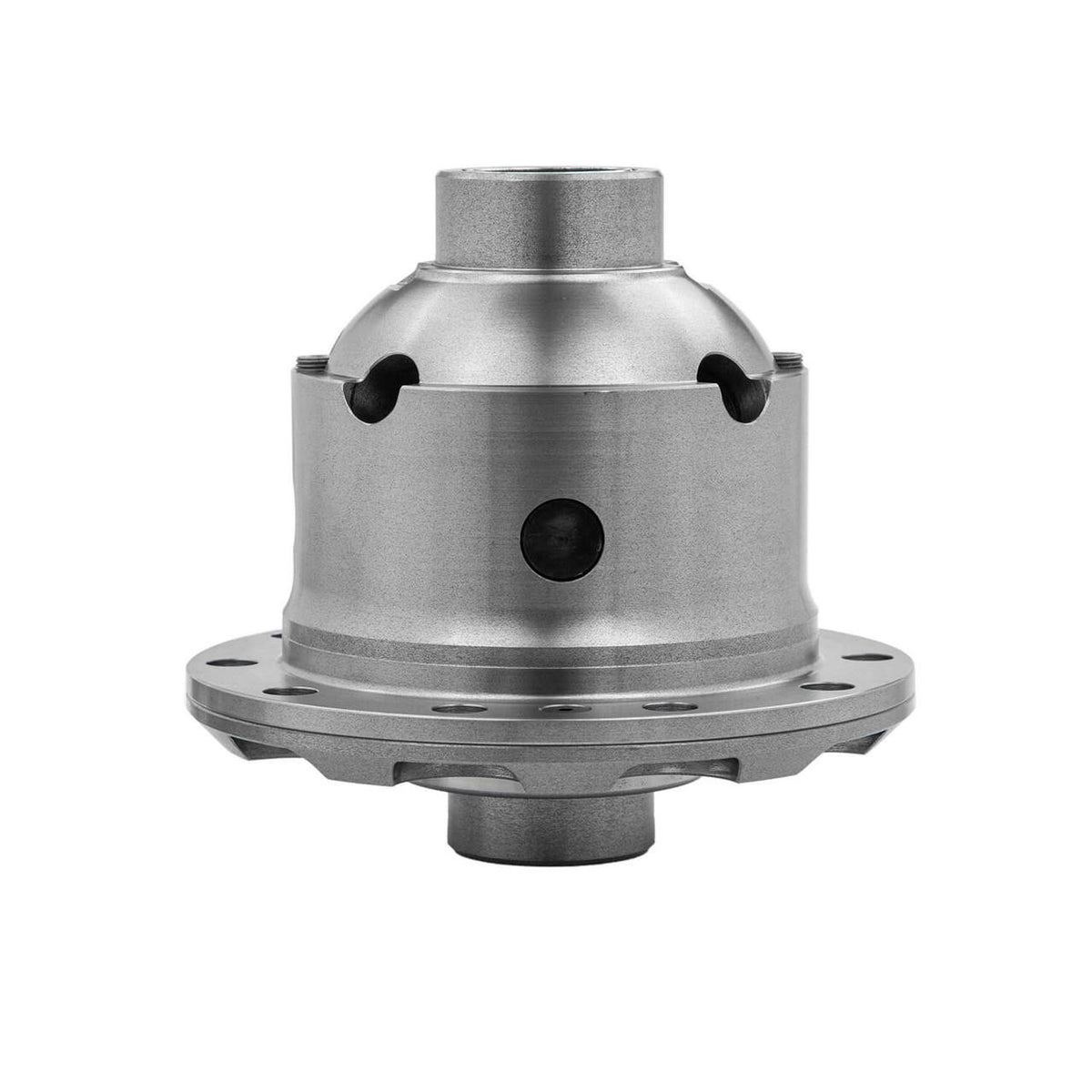

The ARB RD90 is an air-actuated, driver-selectable locking differential for the Toyota 7.5" IFS axle — 100% mechanical lock on demand, fully open when disengaged.
Technical specifications
Ring gear: Toyota 7.5" IFS
Spline: 27
Shaft diameter: 1.10"
Ratio range: All ratios
Material: Forged steel
Actuation: Pneumatic (air)
Engineering
Two-piece, ultra-durable design with minimal moving parts for maximum reliability
Patented, timed pneumatic locking mechanism — high strength with ultra-fast unlocking
Steel-reinforced, elastomer-bonded annular seal rated for extreme temperatures
Fully open when disengaged — no effect on on-road drivability or driveline wear
5-year warranty
Fitment: Toyota Prado 90 / Early 4Runner Front (7.5"). Toyota 7.5" IFS, 27-spline, all ratios. Older 7.5" independent front.
Spline note: Toyota 8" IFS front differentials are typically 30 spline — confirm your spline count before ordering.
In the box: Air Locker differential, dash activation switch, solenoid valve, air line and bulkhead fitting. An ARB air compressor is required to operate (sold separately) — pair with an ARB CKMA12 (single) or CKMTA12 (twin).
