Brake Master Cylinder — 13B-T / 1FZ-FE / 1HZ / 1KZ-T + Land Cruiser 70 Series & Prado BJ, FJ, HZJ, LJ, PZJ, RJ (1984–1996)

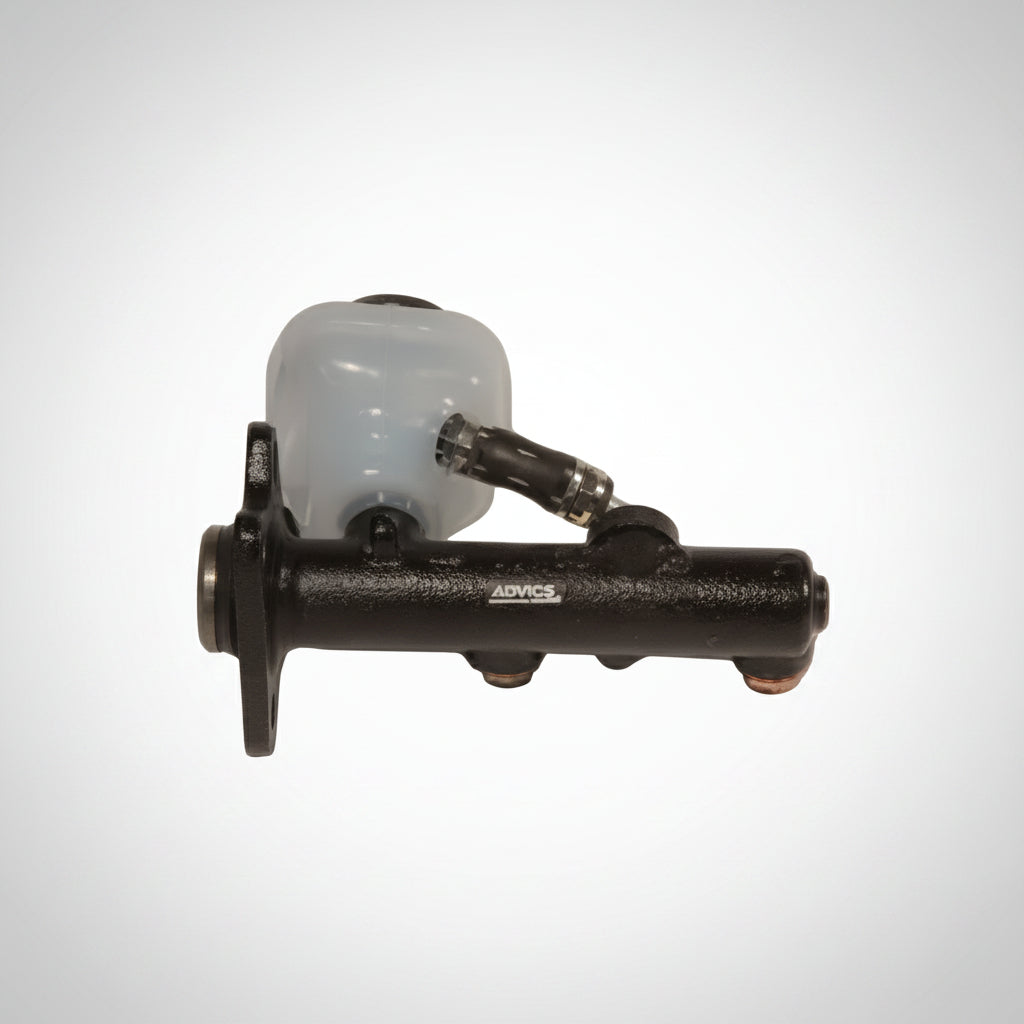

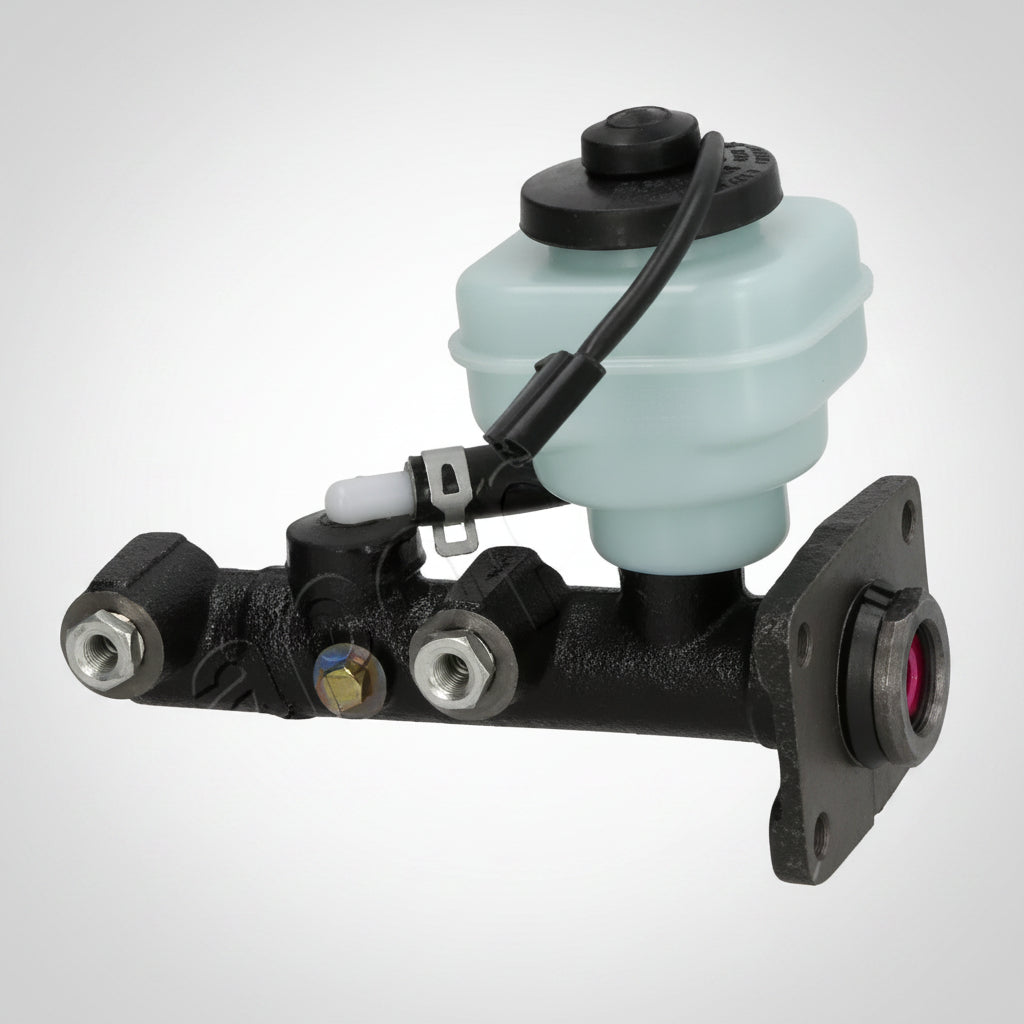

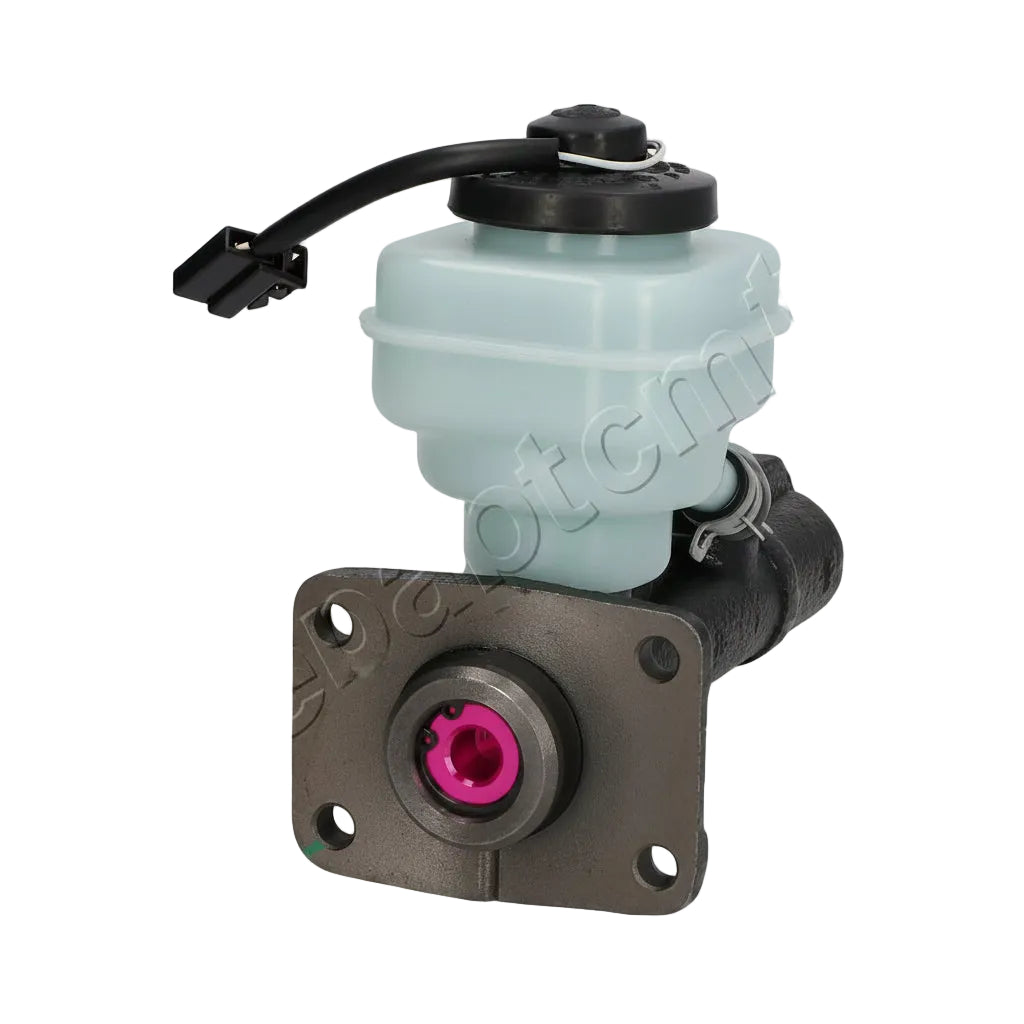

Brake Master Cylinder Sub-Assembly for Toyota Land Cruiser 70 Series & Prado (1984–1996).

This is the brake master cylinder for the Toyota Land Cruiser 70 Series. The master cylinder converts brake pedal pressure into hydraulic pressure to actuate the front and rear brakes. A leaking or failing master cylinder causes a spongy pedal, brake fade, or complete brake failure. Replace immediately if any internal or external leakage is detected.

Note: The original OE master cylinder is discontinued. This part (47201-60430) is the compatible replacement and may require slight brake line adjustment for exact fitment on some variants. The previous replacement part number was 47201-60420.

Fitment

• Land Cruiser 70 Series — BJ73LV, FJ70L, FJ70LV, FJ70RV, FJ73L, FJ73LV, FJ73RV, FJ75LP, FJ75LV, FJ75RP, FJ75RV, HJ75RP, HZJ70LV, HZJ70RV, HZJ73LV, HZJ73RV, HZJ75LP, HZJ75LV, HZJ75RP, HZJ75RV, LJ70LV, LJ73LV, LJ77LV, LJ79LV, LJ79RV, PZJ70LV, PZJ70R, PZJ70RV, PZJ73LV, PZJ73R, PZJ73RV, PZJ75LP, PZJ75LV, PZJ75RP, PZJ75RV, RJ70LV, RJ73LV, RJ77LV, RJ77RV (1984–1996)
• Land Cruiser Prado — FJ75, HZJ73HV, HZJ73V, HZJ77HV, PZJ70, PZJ70V, PZJ77HV, PZJ77V

Engine Compatibility

• 2L — 2.4L I4 OHC Diesel (naturally aspirated)
• 2LT — 2.4L I4 OHC Turbo Diesel
• 2LTE — 2.4L I4 OHC Turbo Diesel EFI
• 3L — 2.8L I4 OHC Diesel (naturally aspirated)
• 3B — 3.4L I4 OHV Diesel
• 2H — 4.0L I6 Diesel (naturally aspirated)
• 1HZ — 4.2L I6 Diesel (naturally aspirated)
• 1PZ — 3.5L I5 Diesel (naturally aspirated)
• 3F — 4.0L I6 OHV Petrol (carburettor)
• 22R / 22RE — 2.4L I4 OHC Petrol

Part Numbers

Toyota OE: 47201-60430

Previous replacement: 47201-60420

Interchange: 44610-60460
