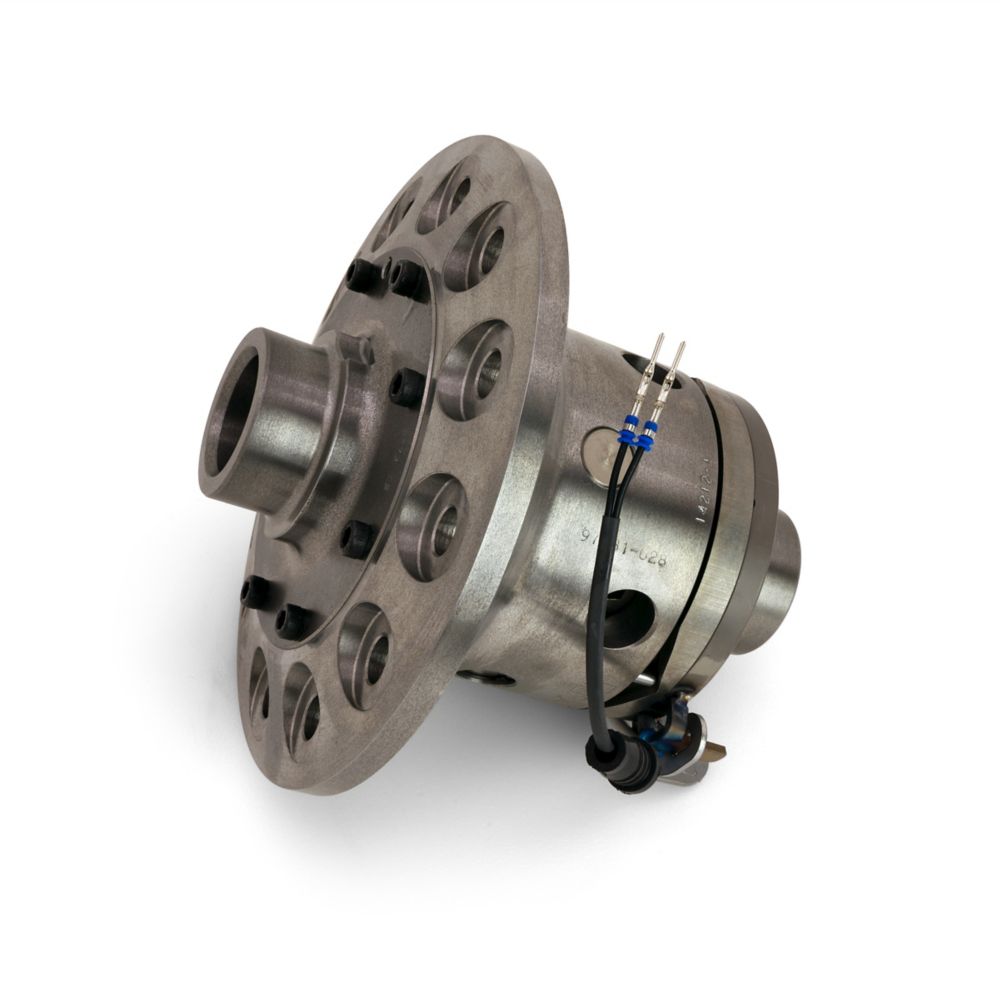

Eaton E-Locker — Toyota Land Cruiser 40/60/70 Series (9.5", 30-Spline) | 14212-1

The Eaton 14212-1 is an electrically selectable locking differential (E-Locker) for the Toyota 9.5" axle — 100% lock at the flick of a dash switch, with no compressor or air lines.

NOT COMPATIBLE WITH C CLIP REAR AXLES

Technical specifications

• Ring gear: 9.5"
• Spline: 30
• Ratio range: 3.91 & up
• Actuation: 12V electromagnetic (selectable)
• Weight: 24.95 lb
• Material: Net-forged gears

Engineering

• Net-forged gears for outstanding strength and durability
• 12V electromagnetic actuation — instant engage / disengage, works in forward and reverse
• Supplied as a complete assembly with wiring harness and dash switch
• Fully open when disengaged for quiet, streetable on-road manners
• No air compressor or air lines required

Fitment: Toyota Land Cruiser 40/60/70 Series (9.5", non-C-clip). Toyota 9.5" (non-C-clip only), 30-spline, 3.91 & up ratios. NON-C-CLIP ONLY — not compatible with the early semi-float 27-spline C-clip rear (use ARB RD264). 50mm bearings.

Ring-gear sizing: Toyota rear differentials quoted as 8.9-inch and 9.5-inch are frequently used synonymously — the meaningful difference between Toyota rear diffs is usually the spline count (27, 30, 32 or 36 spline), not the nominal ring-gear size. Match your axle by spline count / axle code rather than the quoted size before ordering.

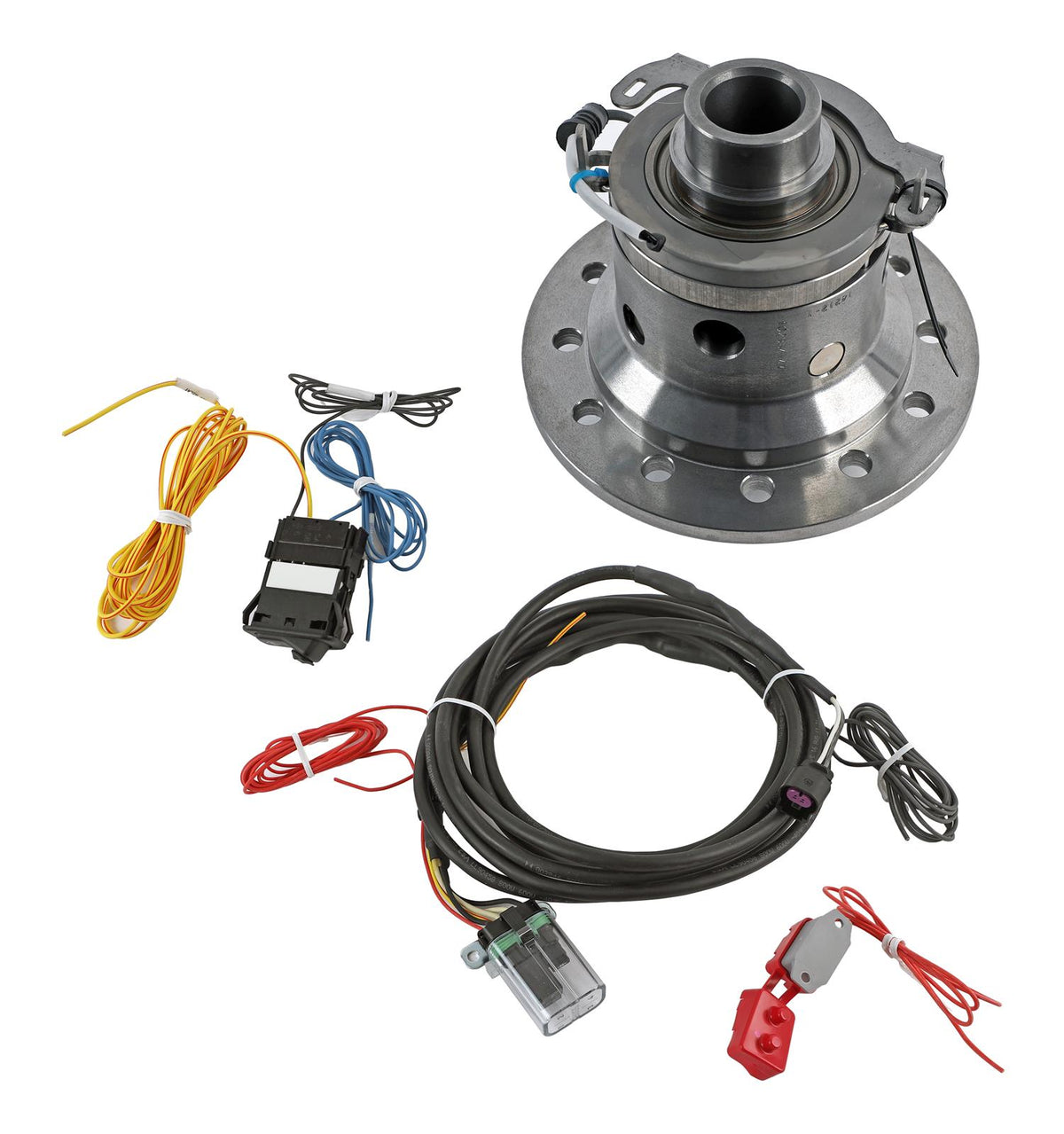

In the box: assembled differential case, wiring harness and dash switch. No compressor required.
