Toyota 1KD-FTV LOADED Cylinder Head — KDN145, KDN150, KDN165, KDN170 (2002–2015)

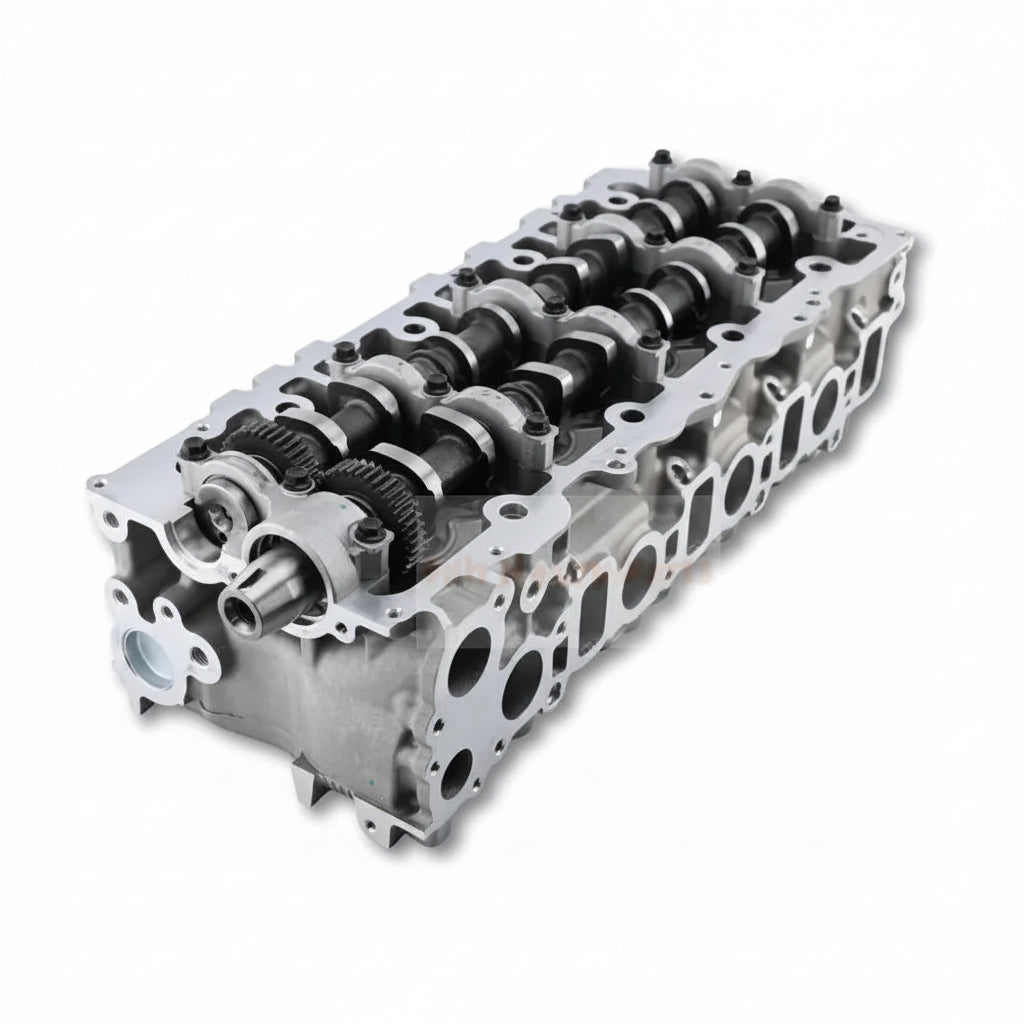

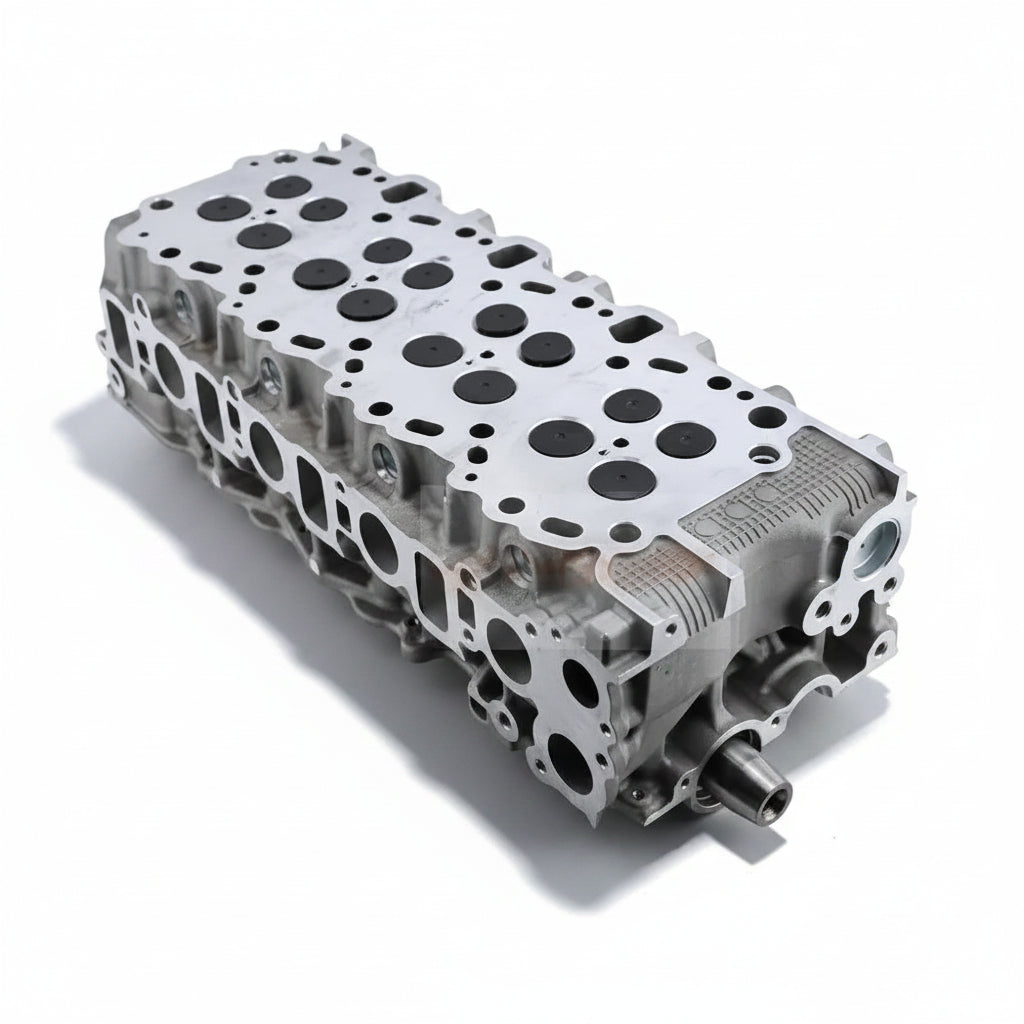

Complete Loaded Cylinder Head Assembly for the Toyota 1KD-FTV 3.0L turbo diesel engine. This is a fully assembled, ready-to-install cylinder head — complete with camshafts, valves, and hydraulic lifters already installed. No additional head assembly required, although we DO recommend removing the cams to apply additional assembly lube if you are not intending to install immediately. Proper oil priming is required as per Factory Service Manual prior to startup.

Replacing your cylinder head with a loaded assembly saves significant labour time and ensures all internal components are correctly fitted and within spec from the start. Ideal for engine rebuilds, head gasket failures, or warped/cracked head replacements.

Bundle Options

Option 1 — Cylinder Head Only

• Complete loaded cylinder head assembly (camshafts, valves, hydraulic lifters, valve springs, retainers & seals)

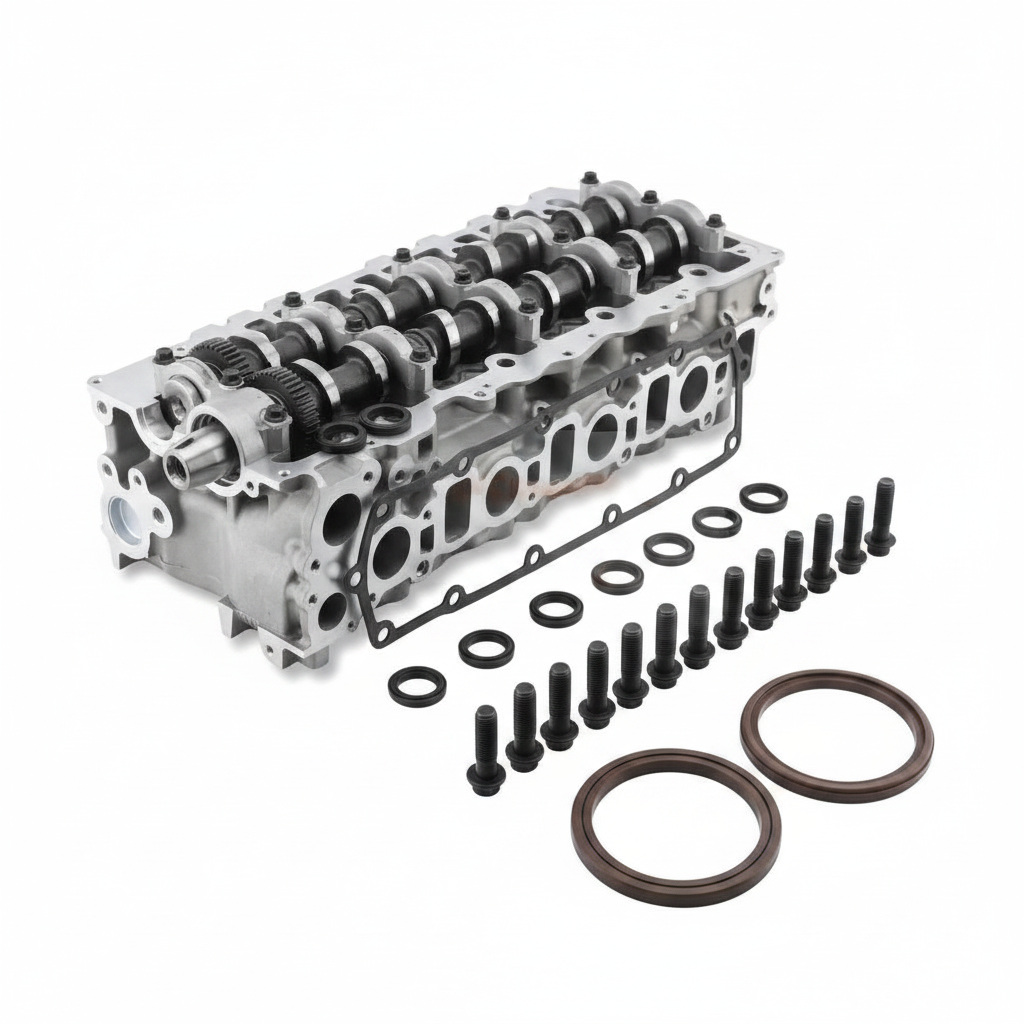

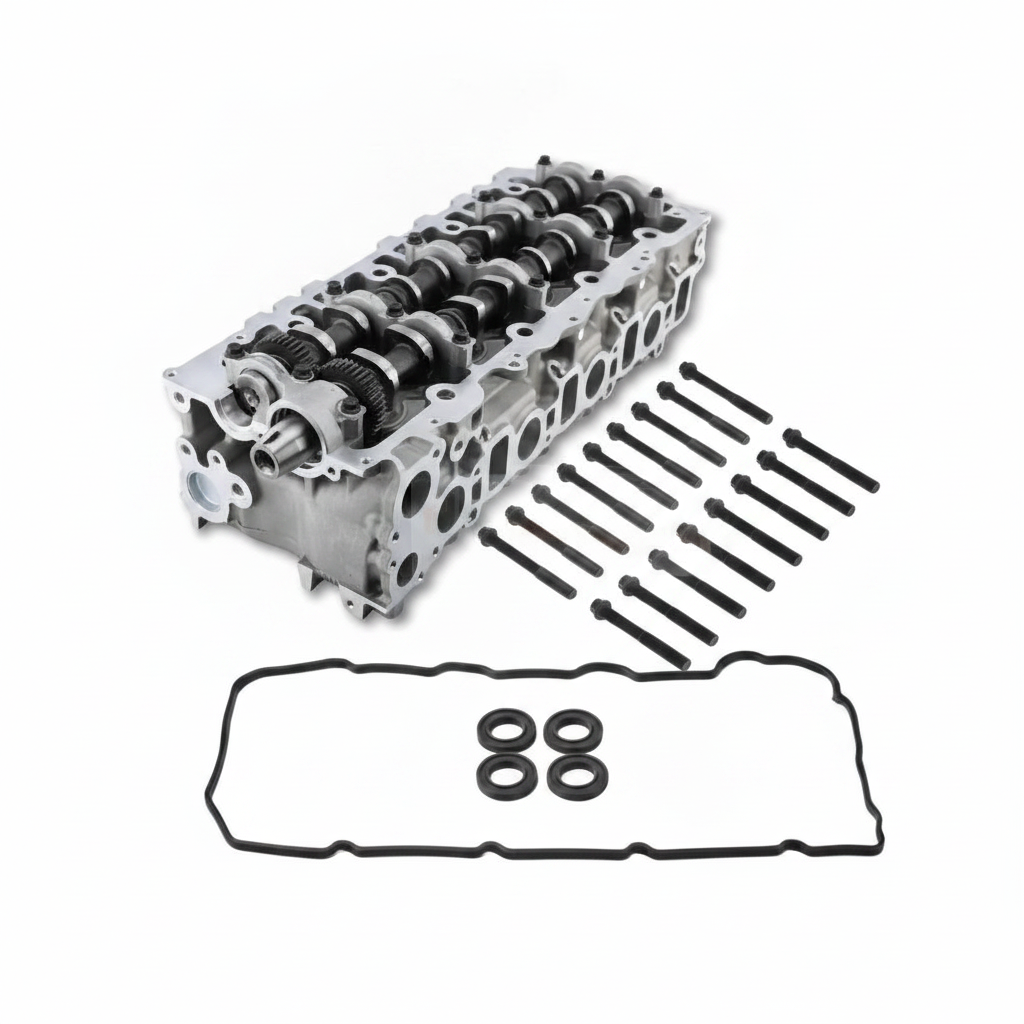

Option 2 — Head + Head Gasket + Head Bolts

• Complete loaded cylinder head assembly
• OEM-spec head gasket
• Head bolts

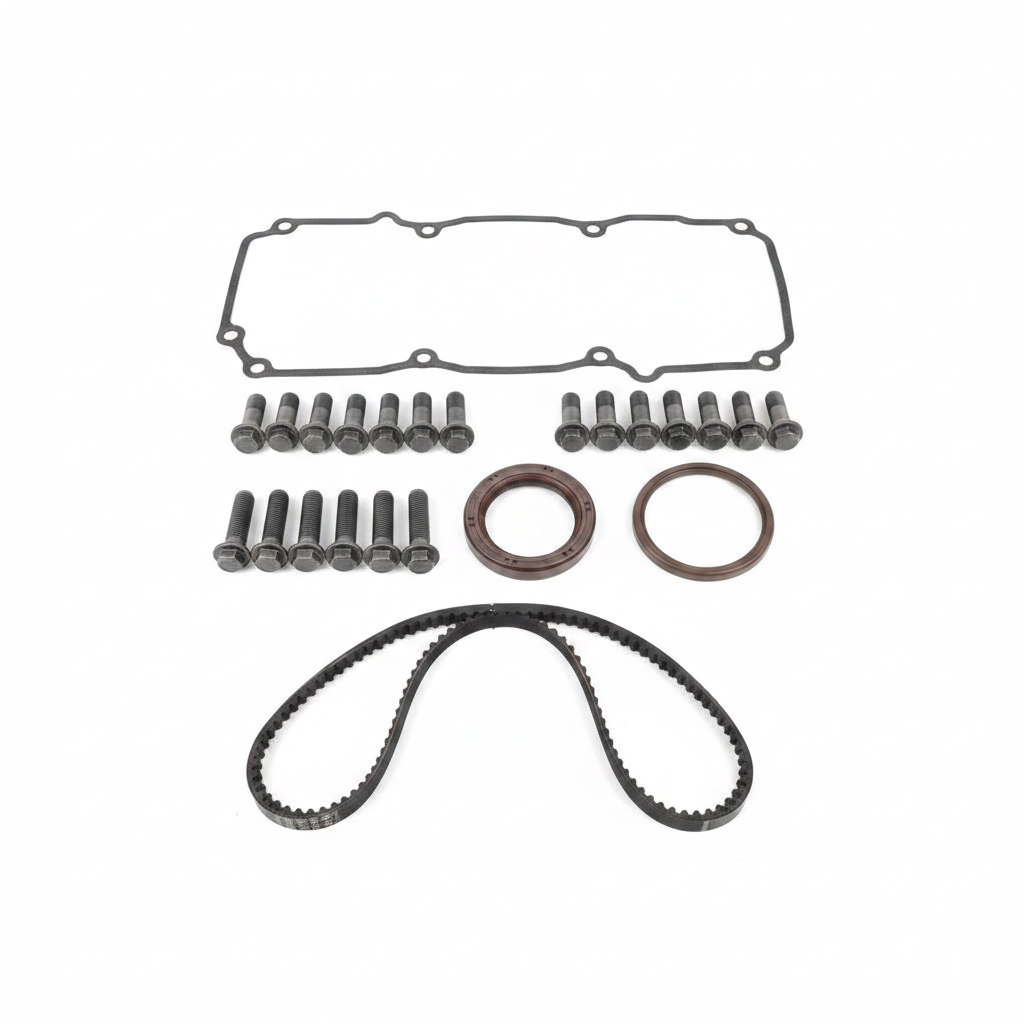

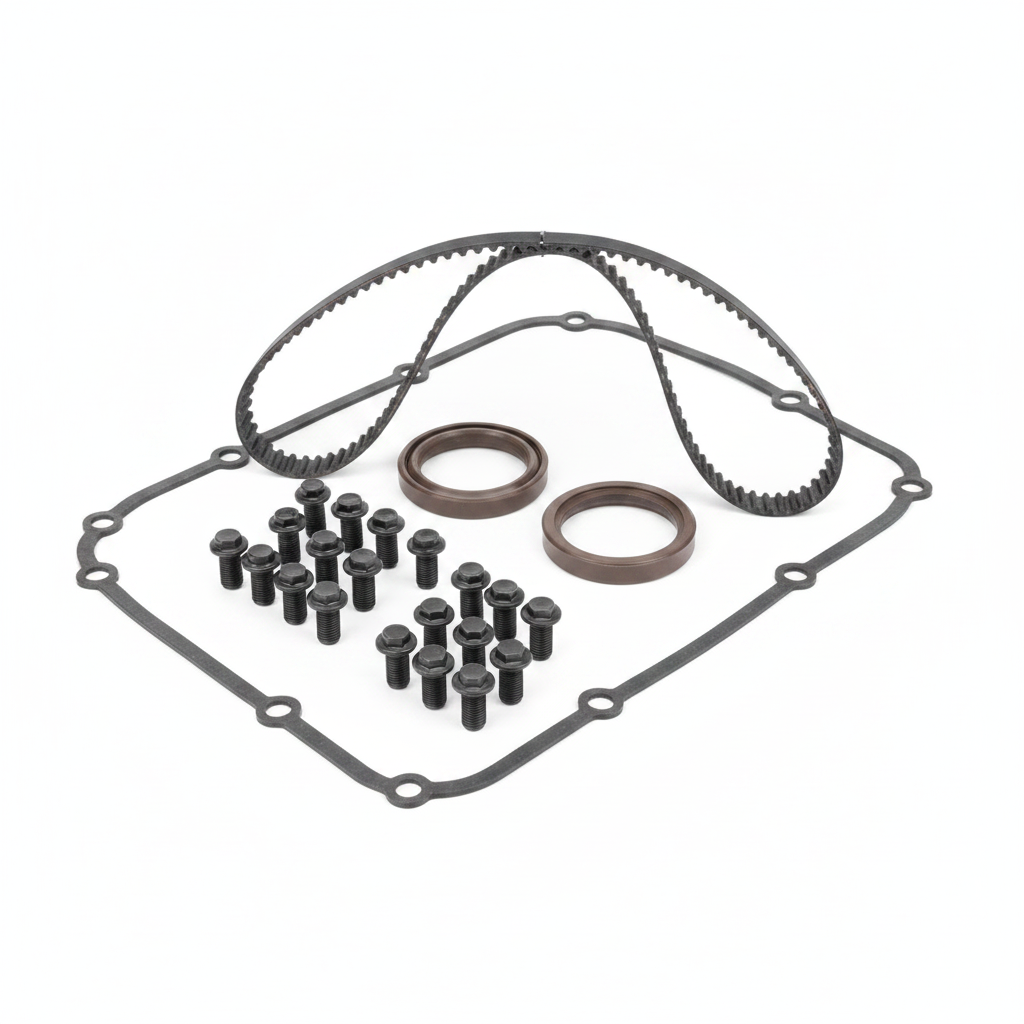

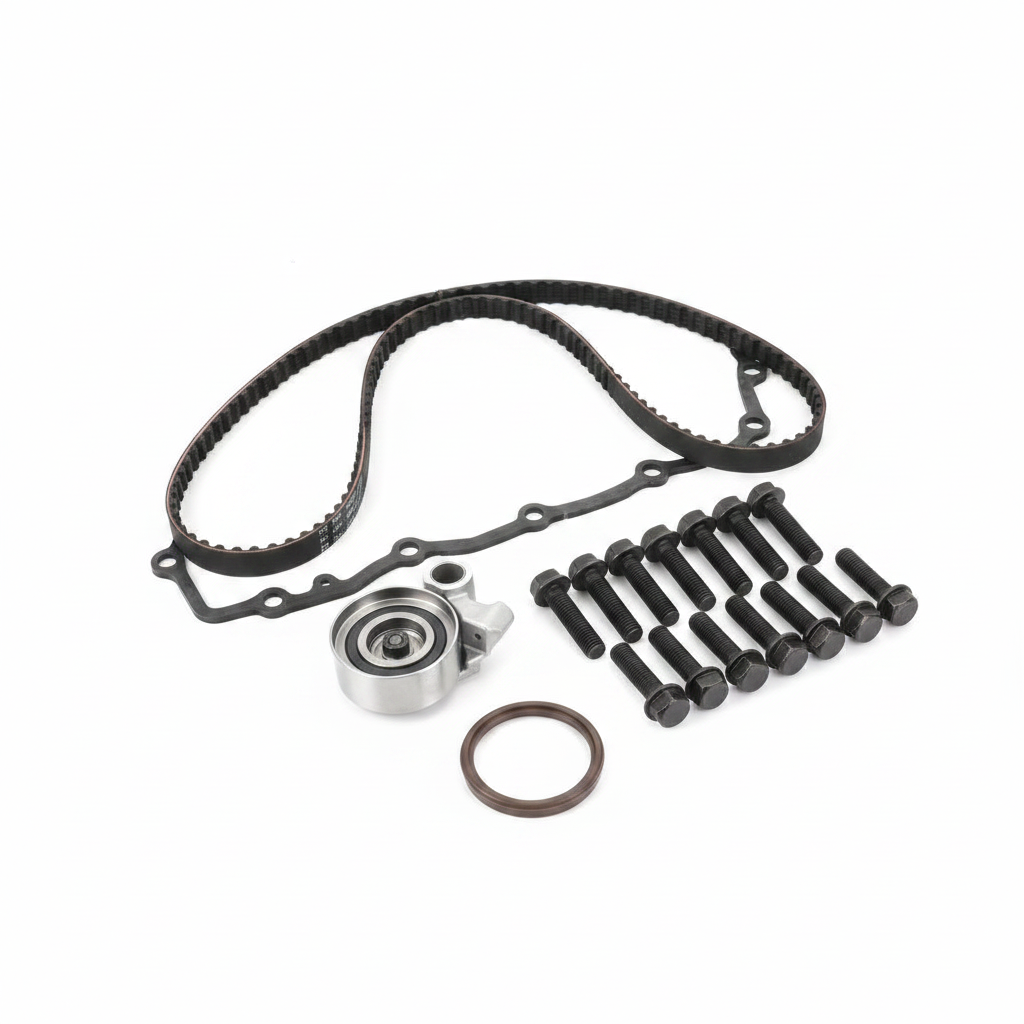

Option 3 — Head + Gasket + Bolts + Timing Belt Kit

• Complete loaded cylinder head assembly
• OEM-spec head gasket
• Head bolts
• Timing belt kit

Option 4 — Head + Gasket + Bolts + Timing Belt Kit + Water Pump Kit

• Complete loaded cylinder head assembly
• OEM-spec head gasket
• Head bolts
• Timing belt kit
• Water pump kit

What's Included in Every Bundle

• Complete cylinder head casting
• Camshafts (intake & exhaust)
• Valves (intake & exhaust)
• Hydraulic valve lifters
• Valve springs, retainers, and seals

Oversize package. Contact us for shipping options.

Fitment

• Hilux — KDN145, KDN150, KDN165, KDN170 (2002–2015)
• Fortuner — KUN51 / KUN61 | 1KD-FTV | 3.0L (2005–2015)
• Fortuner — KUN156 | 1KD-FTV | 3.0L (2015–Present)
• HiAce Van — KDH201 / KDH206 / KDH211 / KDH221 | 1KD-FTV | 3.0L (2006–Present)
• HiAce Commuter — KDH203 / KDH213 / KDH223 | 1KD-FTV | 3.0L (2006–Present)
• Hilux — KDN151 / KDN166 | 1KD-FTV | 3.0L (2002–2004)
• Hilux — KUN16 / KUN26 / KUN36 | 1KD-FTV | 3.0L (2005–2014)
• Hilux — KUN126 / KUN136 | 1KD-FTV | 3.0L (2015–Present)
• Hilux Surf — KDN185 | 1KD-FTV | 3.0L (2000–2002)
• Hilux Surf — KDN215 | 1KD-FTV | 3.0L (2002–2005)
• Land Cruiser Prado 90 — KDJ90 / KDJ95 | 1KD-FTV | 3.0L (2000–2002)
• Land Cruiser Prado 120 — KDJ120 / KDJ121 / KDJ125 | 1KD-FTV | 3.0L (2002–2009)
• Land Cruiser Prado 150 — KDJ150 / KDJ155 | 1KD-FTV | 3.0L (2009–Present)

Toyota Part Numbers

11101-0L050, 11101-30030, 11101-30031, 11101-30032, 11101-30050, 11101-30051, 11101-0L060, 11101-30080
