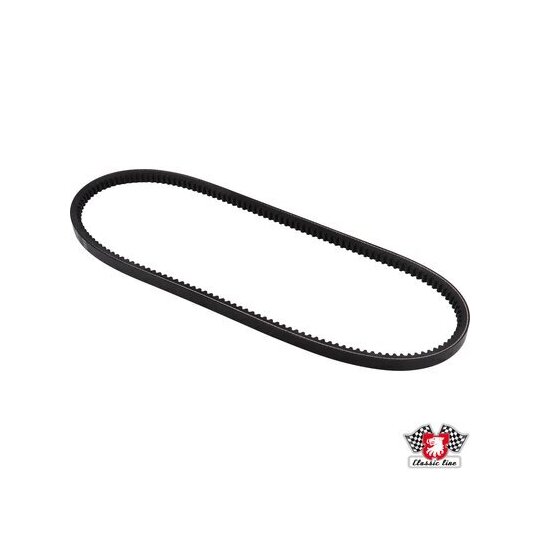

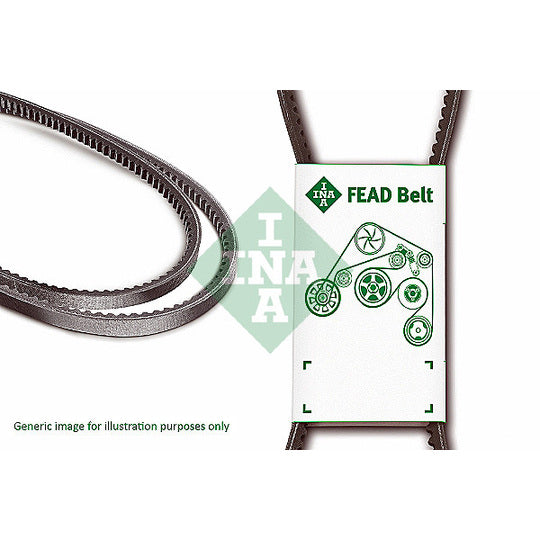

Fan & Alternator V-Belt — 1FZ-F / 1FZ-FE, Land Cruiser 70, 80 & 100 Series & Lexus LX450 (1992–2007)

Fan & Alternator V-Belt for the 1FZ-F & 1FZ-FE engines — Toyota Land Cruiser 70, 80 & 100 Series FZ (1992–2024).

These V-belts drive the cooling fan and alternator from the crankshaft pulley. On the 1FZ engine, the belts run as a matched pair and must always be replaced together to ensure even load distribution and prevent premature wear. A worn or broken belt risks overheating and loss of alternator charge.

⚠ ALWAYS REPLACE IN PAIRS. DO NOT REPLACE SINGLES. PRICE IS FOR A PAIR.

Replacement Interval

Inspect at every service. Replace every 50,000 km or sooner if cracking, glazing, fraying, or squealing is present.

Fitment

• Land Cruiser 70 Series — FZJ70L, FZJ70LV, FZJ70RV, FZJ71L, FZJ71R, FZJ73L, FZJ73LV, FZJ74L, FZJ75LP, FZJ75LV, FZJ75RP, FZJ75RV, FZJ76L, FZJ78L, FZJ78R, FZJ79L, FZJ79R (1992–2024)
• Land Cruiser 80 Series — FZJ80G, FZJ80L, FZJ80R (1992–1997)
• Land Cruiser 100 Series — FZJ100L, FZJ105L, FZJ105R (1998–2002)

Engine Compatibility

• 1FZ-F (4.5L I6 DOHC Petrol)
• 1FZ-FE (4.5L I6 DOHC Petrol EFI)

Part Numbers

Toyota OE: 90916-02353, 99332-51130
