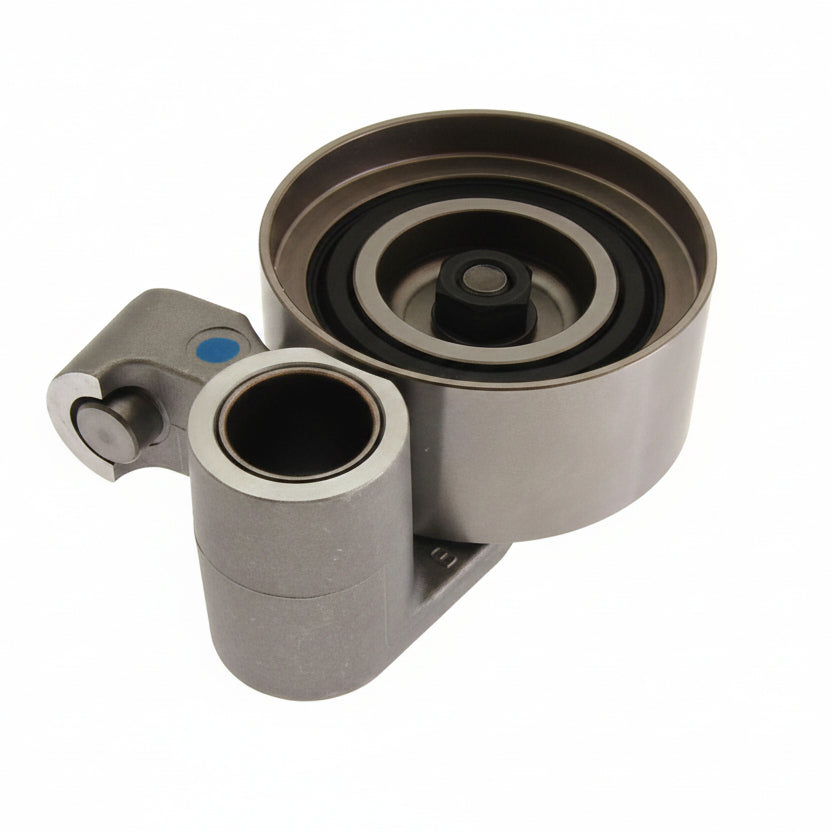

Timing Belt Hydraulic Tensioner No.1, 1HD-FT, 1HD-FTE, 1HD-T, 1HZ, Land Cruiser 70, 80 & 100 Series (1999–2024)

Timing Belt Hydraulic Tensioner No.1 for the 1HD-FT, 1HD-FTE, 1HD-T & 1HZ engines — Toyota Land Cruiser 70, 80 & 100 Series (1999–2024).

The hydraulic tensioner automatically maintains correct timing belt tension throughout the belt's service life. A failed tensioner causes belt slack, timing deviation, and can lead to catastrophic engine damage. Always replace the tensioner together with the timing belt and idler pulleys for a complete, reliable repair.

⚠ HYDRAULIC TENSIONER MODELS ONLY. This part is not compatible with spring-type tensioner engines. If you are unsure which type your vehicle has, contact us before ordering.

Replacement Interval

Replace at every timing belt service — every 100,000 km. Never reuse a tensioner with a new belt.

Fitment

• Land Cruiser 70 Series — HDJ78R, HDJ79R, HZJ70LV, HZJ70R, HZJ70RV, HZJ71L, HZJ71R, HZJ73LV, HZJ74L, HZJ75LP, HZJ75LV, HZJ75RP, HZJ75RV, HZJ76L, HZJ76R, HZJ78L, HZJ78R, HZJ79L, HZJ79R (1990–2024)
• Land Cruiser 80 Series — HDJ80L, HDJ80R, HDJ81, HDJ81V (1990–1997)
• Land Cruiser 100 Series — HDJ100L, HDJ100R, HDJ101K, HZJ105L, HZJ105R (1998–2007)

Engine Compatibility

• 1HD-FT (4.2L I6 24V Turbo Diesel)
• 1HD-FTE (4.2L I6 24V Turbo Diesel EFI)
• 1HD-T (4.2L I6 12V Turbo Diesel)
• 1HZ (4.2L I6 Diesel)

Part Numbers

Toyota OE: 13505-17020
