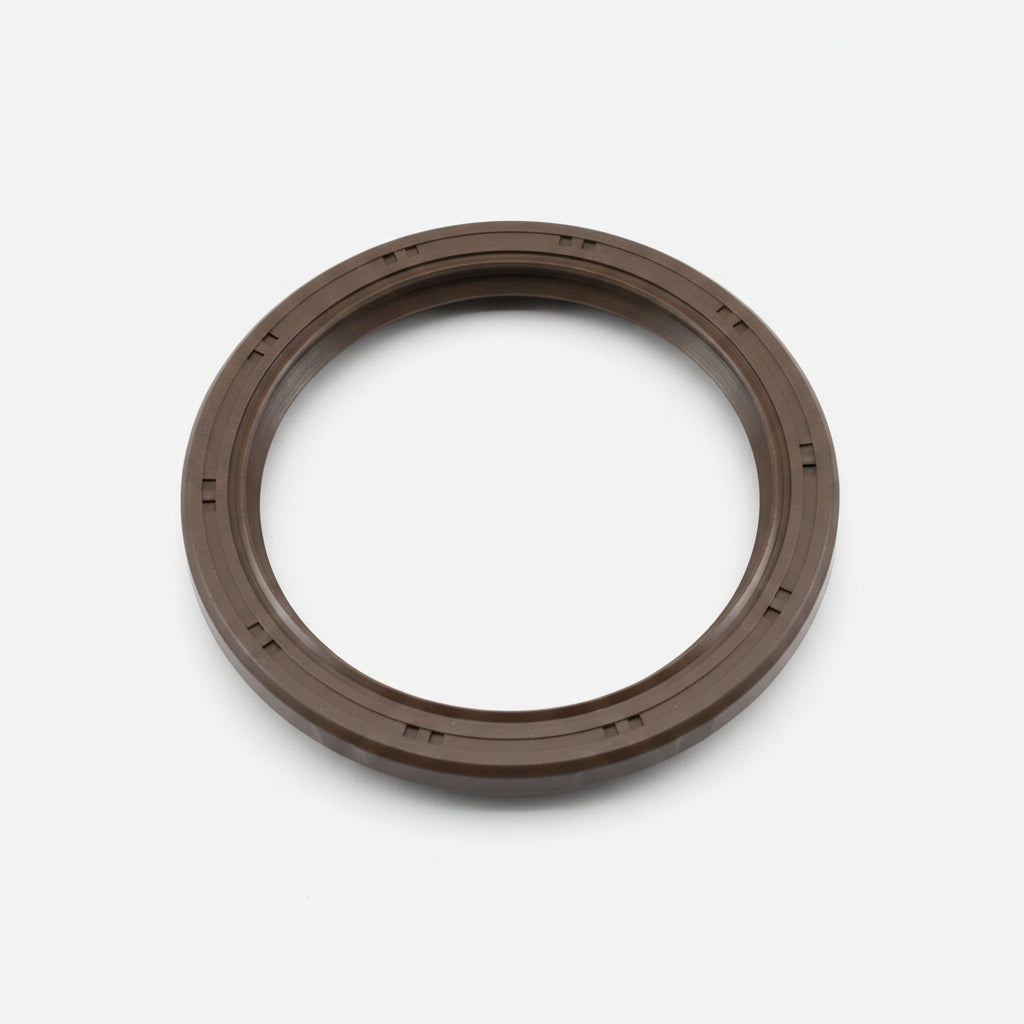

Front Crankshaft Oil Seal, 1HZ, 1HD-T, 1KZ-TE, Land Cruiser HZJ, HDJ & Hilux Surf KZN185

Front Crankshaft Oil Seal (Timing Case) for the 1HZ, 1HD-T & 1KZ-TE engines — Toyota Land Cruiser & Hilux Surf.

This is the main front crankshaft oil seal located at the timing case. It seals the crankshaft snout behind the main pulley and prevents oil leakage into the timing belt or timing gear area. Oil contamination of the timing belt causes rapid belt degradation and can lead to catastrophic timing failure. Always replace this seal whenever servicing the timing belt, timing gears, or main crankshaft pulley — the pulley must be removed anyway, so there is no reason to reuse the old seal.

Note: This seal (90311-58006) does not have a secondary lip on the face. It is interchangeable in some applications with 90311-58007 (with secondary lip). Verify your application before ordering if unsure.

Fitment

• Land Cruiser 70 Series — HZJ70, HZJ73, HZJ75, HZJ77, HZJ81, HDJ78, HDJ79
• Land Cruiser 80 Series — HZJ80, HZJ81, HDJ80, HDJ81
• Hilux Surf — KZN185G, KZN185W

Engine Compatibility

• 1HZ — 4.2L I6 Diesel (naturally aspirated)
• 1HD-T — 4.2L I6 12V Turbo Diesel
• 1KZ-TE — 3.0L I4 Turbo Diesel EFI

Part Numbers

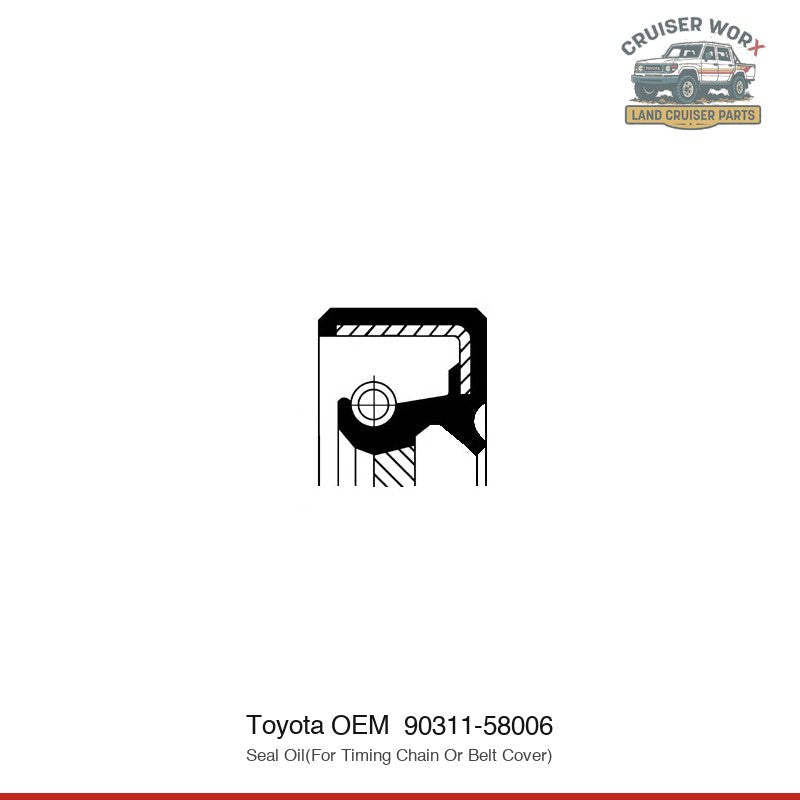

Toyota OE: 90311-58006

Interchange: 90311-58007 (with secondary lip — verify fitment)
