ARB Portable 12V Single Air Compressor — Portable On-Board Air for Lockers & Tires | CKMP12

The ARB CKMP12 is a compact, portable 12V air compressor built for 4WD adventurers who need reliable on-board air wherever the trail takes them. Designed to engage ARB Air Lockers and handle tire inflation and air tool operation, the CKMP12 comes in a weather-proof carry case ready for the tracks, beach, or overland route.

Key Features

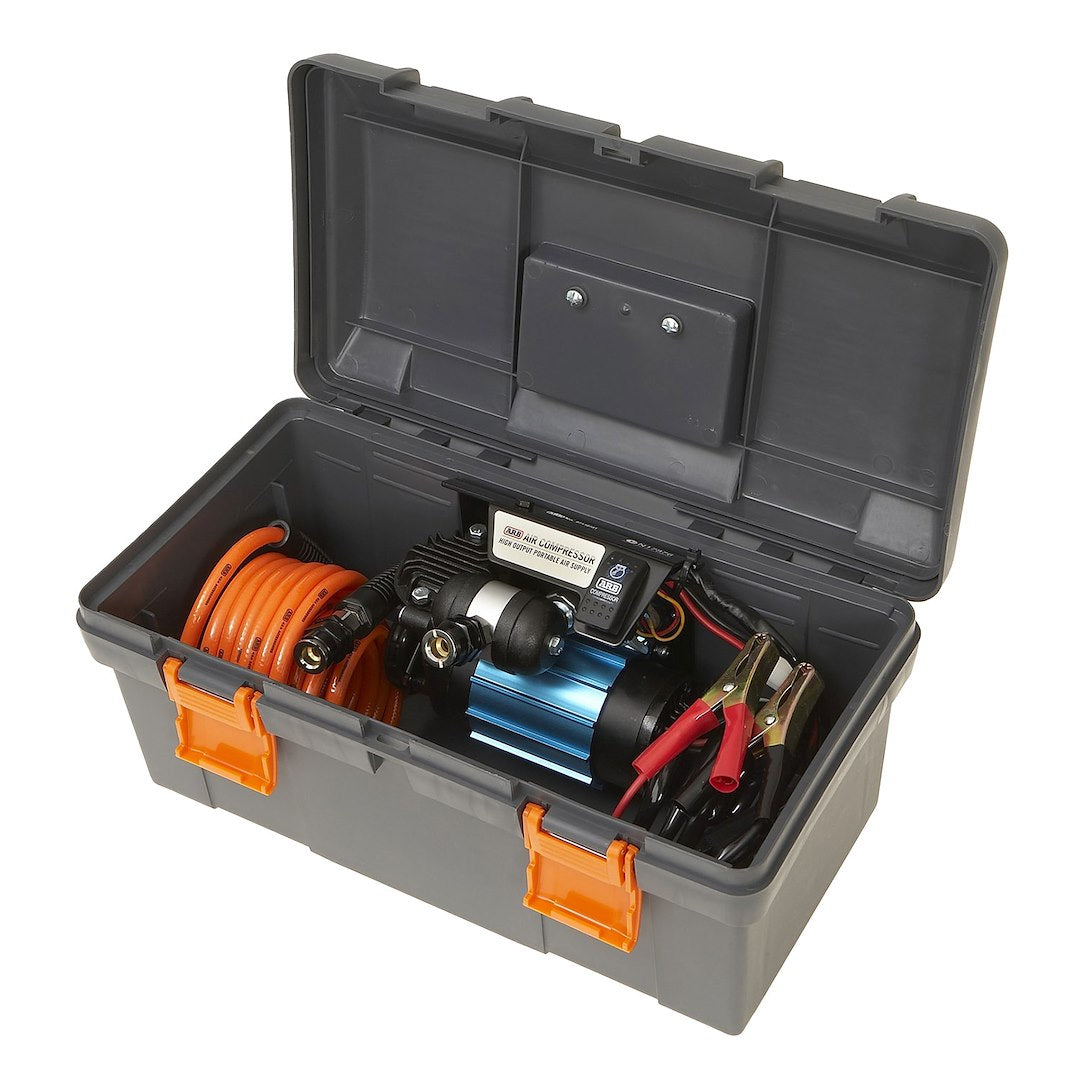

• Portable, carry-anywhere design in a weather-proof, impact-resistant polypropylene case
• Engages ARB Air Lockers on demand for instant traction
• Inflates tires and powers air tools
• Built-in pressure switch with over-pressure safety valve
• Hard anodized cylinder bore for reduced friction and extended service life
• Teflon-impregnated carbon fiber piston seals for durability
• Stainless-steel heat shield covers hot-touch areas for safer operation
• Thermally protected motor against extreme temperature damage
• Handy neoprene pocket to store air hose and accessories
• Duty cycle: 50%

Performance

• Air flow @ 0 PSI: 2.54 CFM
• Air flow @ 29 PSI: 1.59 CFM
• Max pressure: 150 PSI
• Max current draw: 14 A
• Duty cycle: 50%

Specifications

• Part number: CKMP12
• Brand: ARB
• Voltage: 12V DC
• Motor configuration: Single, portable
• Case: Weather-proof, impact-resistant polypropylene
• Weight: 14 lb
• Country of origin: Australia

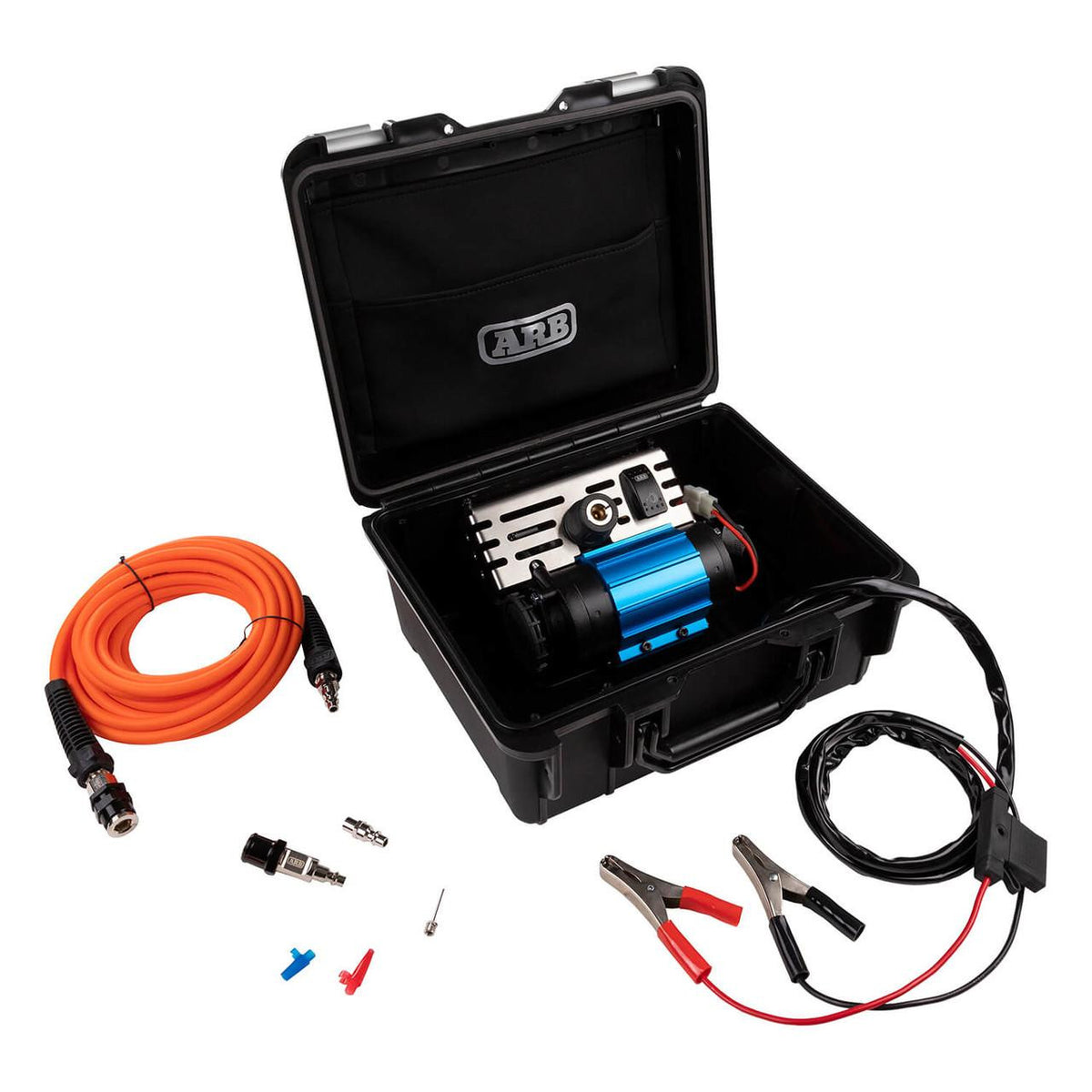

In the Box

• CKMP12 single motor compressor unit
• Weather-proof carry case
• Air hose
• Wiring and power leads
• Air fittings and accessories

Note: The CKMP12 is a portable unit intended for intermittent use (50% duty cycle). For permanent under-bonnet installation, see the CKMA12 (single) or CKMTA12 (twin). For 24V vehicles, see the CKMA24.
