Front Disc Brake Caliper RH — 1FZ-F / 1FZ-FE / 1HZ / 1KZ-T + Land Cruiser 70, Hilux, Prado, 4Runner (1984–2004)

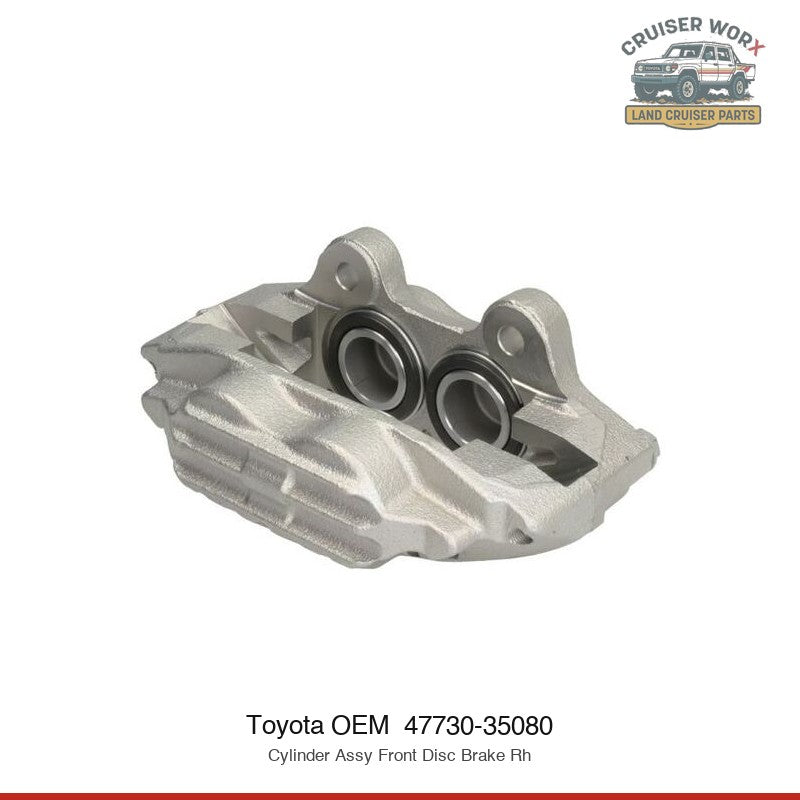

Front Disc Brake Caliper RH Assembly for Toyota Land Cruiser 70 Series, Hilux, Prado & 4Runner (1984–2004).

⚠ FITMENT WARNING — Small Bolt Pattern Knuckle Only. This caliper fits the smaller bolt pattern steering knuckle found on earlier 70 Series and solid axle trucks. It will not fit the heavy-duty knuckle found on HZJ7x or HDJ8x series Land Cruisers. Verify your knuckle bolt pattern before ordering.

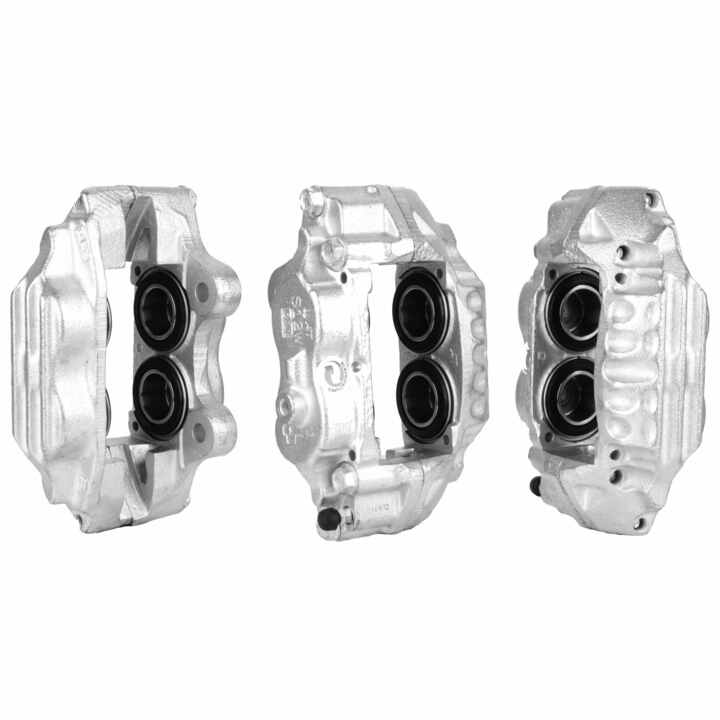

This is the right-hand (passenger side in LHD vehicles) front brake caliper assembly. The RH caliper pairs with the LH caliper (47750-35080). Replace when the caliper is seized, leaking, or has damaged pistons or bores. Always replace calipers in axle pairs and bleed the brake system after installation.

Fitment

• Land Cruiser 70 Series — BJ73LV, FJ70L, FJ70LV, FJ70RV, FJ73L, FJ73LV, FJ73RV, FJ75LP, FJ75LV, FJ75RP, FJ75RV, FZJ70L, FZJ70LV, FZJ70RV, FZJ73L, FZJ73LV, FZJ75LP, FZJ75LV, FZJ75RP, FZJ75RV, HJ75RP, HZJ70LV, HZJ70R, HZJ70RV, HZJ73LV, HZJ73RV, HZJ75LP, HZJ75LV, HZJ75RP, HZJ75RV, KZJ70L, KZJ70LV, KZJ70RV, KZJ73LV, KZJ77LV, KZJ77RV, LJ70LV, LJ70RV, LJ72LV, LJ72RV, LJ73LV, LJ77LV, LJ77RV, LJ79LV, LJ79RV (1984–2004)
• Land Cruiser Prado — FJ75, HZJ70V, HZJ73HV, HZJ73V, HZJ75, HZJ77HV, HZJ77V, KZJ71G, KZJ71W, KZJ78G, KZJ78W, LJ78G, LJ78W, PZJ70, PZJ70V, PZJ77HV, PZJ77V
• Toyota Hilux — LN100, LN105L, LN105R, LN106, LN107, LN108, LN109, LN110L, LN112, LN130G, LN130L, LN131V, LN106L, LN106R, LN107L, LN107R, LN111L, LN111R, LN130R, LN135L, LN135R, RN105L, RN105R, RN106L, RN106R, RN110L, RN110R, RN125L, VZN130G, VZN130L, VZN130R, YN100, YN105, YN106L, YN106R, YN107, YN110L, YN130G, YN130R, YN135L, YN135R
• Hilux Surf — LN130, VZN130 (1989–1995)
• Toyota 4Runner — RN101L, RN106L, RN110L, RN120L, RN121L, RN130L, RN131L, VZN100L, VZN105L, VZN110L, VZN120L, VZN130L, VZN131L, VZN61L, VZN61LG, VZN61LV, VZN66L

Engine Compatibility

• 2L — 2.4L I4 OHC Diesel (naturally aspirated)
• 2LT — 2.4L I4 OHC Turbo Diesel
• 2LTE — 2.4L I4 OHC Turbo Diesel EFI
• 3L — 2.8L I4 OHC Diesel (naturally aspirated)
• 3B — 3.4L I4 OHV Diesel
• 2H — 4.0L I6 Diesel (naturally aspirated)
• 1HZ — 4.2L I6 Diesel (naturally aspirated)
• 1PZ — 3.5L I5 Diesel (naturally aspirated)
• 1KZ-T — 3.0L I4 Turbo Diesel
• 1KZ-TE — 3.0L I4 Turbo Diesel EFI
• 3F — 4.0L I6 OHV Petrol (carburettor)
• 1FZ-F / 1FZ-FE — 4.5L I6 DOHC Petrol EFI
• 22R / 22RE — 2.4L I4 OHC Petrol
• 3VZ-E — 3.0L V6 OHC Petrol
• 3Y / 3Y-E / 4Y — 1.8L–2.0L I4 OHC Petrol

Part Numbers

Toyota OE: 47730-35080

Pair with LH caliper: 47750-35080
