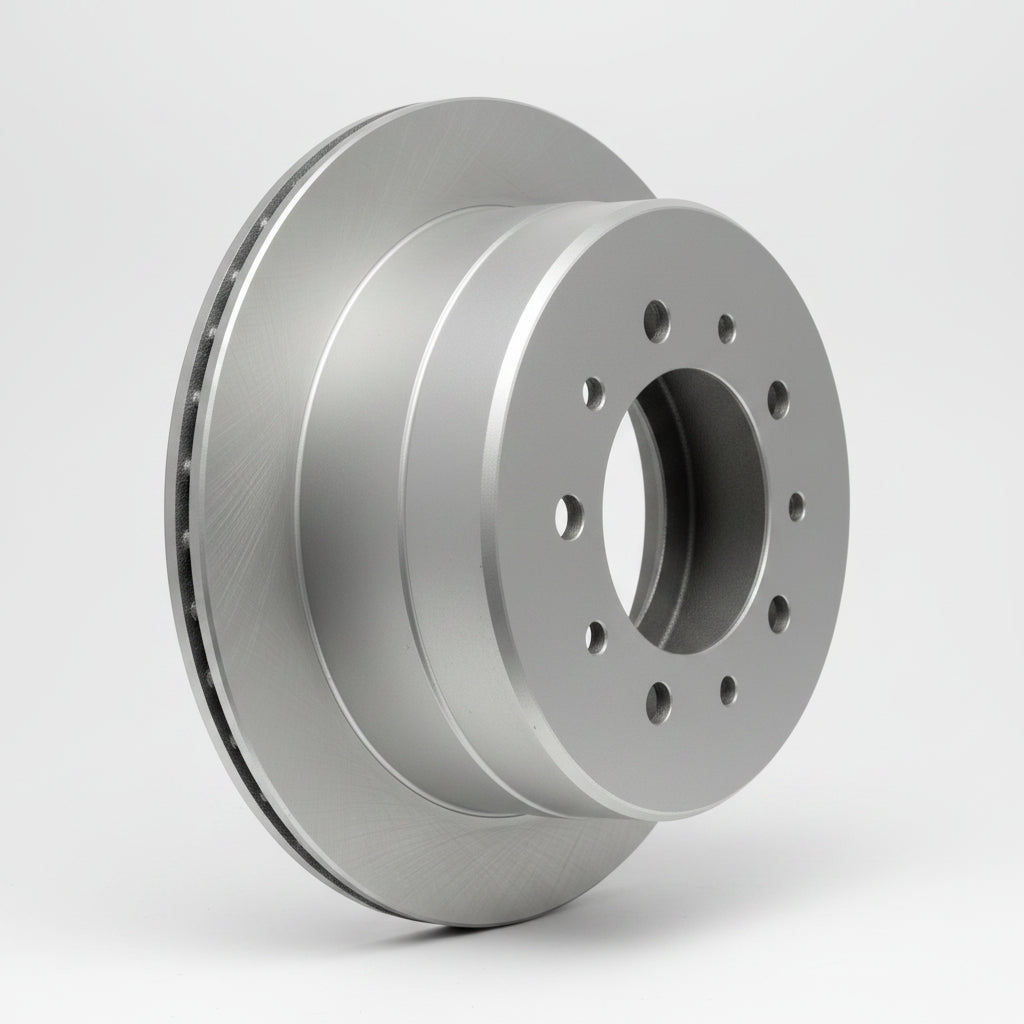

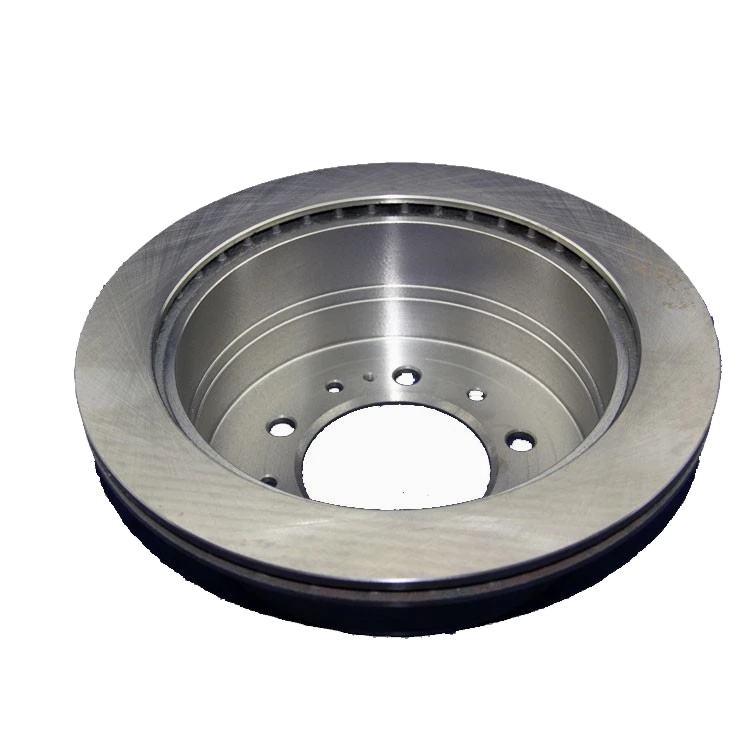

Rear Disc Brake Rotor, Large 329 mm — Land Cruiser Late 80 Series, 100 & 105 Series, Lexus LX450 / LX470 (42431-60221)

Rear Disc Brake Rotor, Large 329 mm — Land Cruiser Late 80 Series, 100 & 105 Series, Lexus LX450 / LX470 (42431-60221)

$259.60 CAD
$259.60 CAD
Sale Sold out
Shipping calculated at checkout.
Brand
Ships from Burnaby, BC in 1–2 business days
Free fitment check: send your VIN before you order
Fitment guarantee: wrong fit, we make it right
1-year warranty · lifetime on Cruiser Worx-built parts · details

Large 329 mm rear disc brake rotor for late Land Cruiser 80 Series, Land Cruiser 100 and 105 Series, and Lexus LX450 / LX470 applications with rear disc brakes.

Vehicle Fitment

  • Land Cruiser 80 Series, from 08/1992 to 1997: FZJ80, HDJ80, HDJ81, HZJ80 and HZJ81, with rear disc brakes.
  • Lexus LX450, 1996–1997: FZJ80.
  • Land Cruiser 100 Series, 1998–2007: FZJ100, HDJ100L, HDJ100R, HDJ101K, UZJ100L, UZJ100R and UZJ100W.
  • Land Cruiser 105 Series, 1998–2007: FZJ105 and HZJ105.
  • Lexus LX470, 1998–2007: UZJ100L and UZJ100R.

Fitment & Installation Notes

  • 80 Series build-date split: this listing specifies the large rear rotor for vehicles built from 08/1992. Earlier vehicles built up to 07/1992 use the smaller 312 mm rotor, reference 42431-60080.
  • Replace rotors in pairs and fit new pads at the same time. Inspect the drum-in-hat parking-brake shoes and hardware during replacement.

Specifications

  • Outer diameter: 329 mm, Stud pattern: 6-stud
  • Drum-in-hat inside diameter: 230 mm; uses the 228 mm parking-brake shoe set

Engine Compatibility

  • 1FZ-FE — 4.5L I6 Naturally Aspirated Petrol, DOHC EFI
  • 1HD-T — 4.2L I6 Turbo Diesel, 12-valve
  • 1HD-FT — 4.2L I6 Turbo Diesel, 24-valve
  • 1HD-FTE — 4.2L I6 Turbo Diesel, 24-valve EFI
  • 1HZ — 4.2L I6 Naturally Aspirated Diesel
  • 2UZ-FE — (100 Series) 4.7L V8 Naturally Aspirated Petrol, DOHC EFI

Part Numbers

  • Toyota OE reference: 42431-60221
  • Earlier 80 Series Pre 1993: 42431-60080, 312 mm, for vehicles built up to 07/1992
View full details
Fitment note: Large rear disc (329 mm, 230 mm drum-in-hat): 80 Series built from 08/1992, and 100 / 105 Series. 80 Series built up to 07/1992 use the small 312 mm rotor 42431-60080. Rear-disc trucks only — North American FJ80 / FZJ80 have rear drums.
